Fuse: Service and Repair

FUSE REPLACEMENT

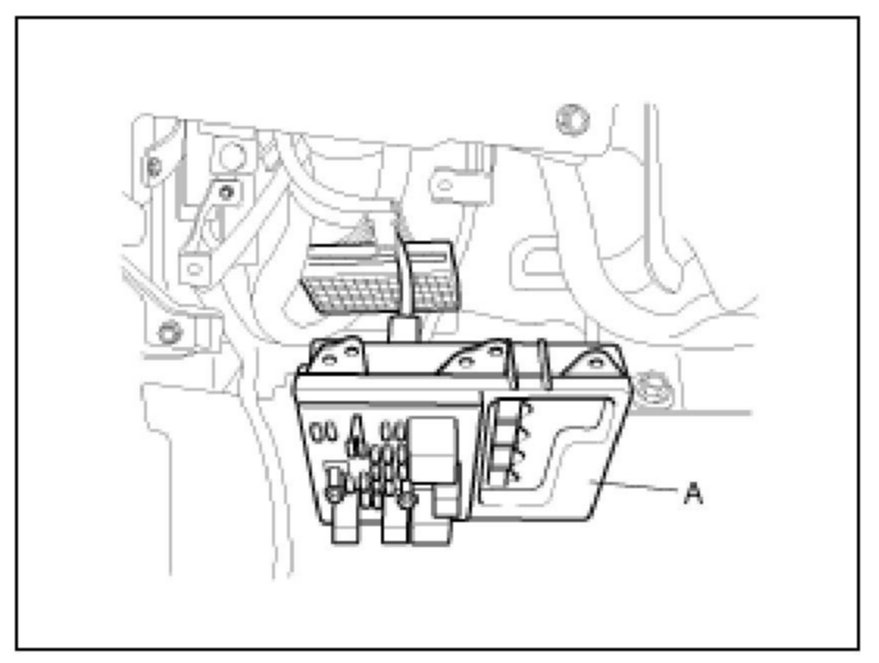

1. The junction box integrated ETACS module. Refer to the replacement of ETACS.
2. Disconnect the negative (-) battery terminal.
3. Remove the driver's lower crash panel.

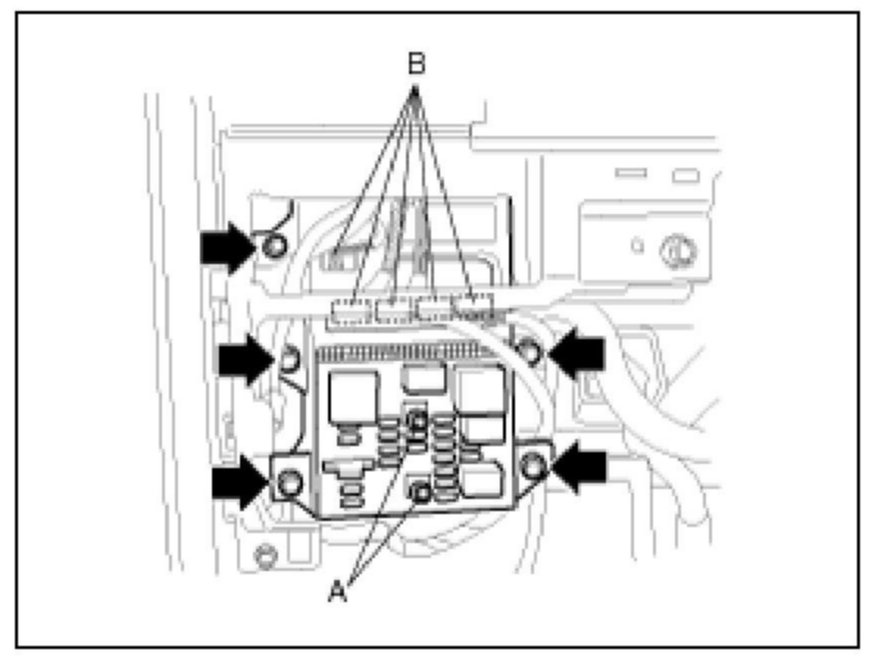

4. Disconnect the ETACM connectors (B).




5. Loosen the connector mounting bolts (A)
6. Loosen the mounting bolts.




7. Remove the ETACM (A) after disconnecting the connector.
8. Installation is the reverse of removal procedures.
