Rear Defogger Switch: Testing and Inspection

Rear Window Defogger Switch

INSPECTION
1. Remove the negative (-) battery terminal.

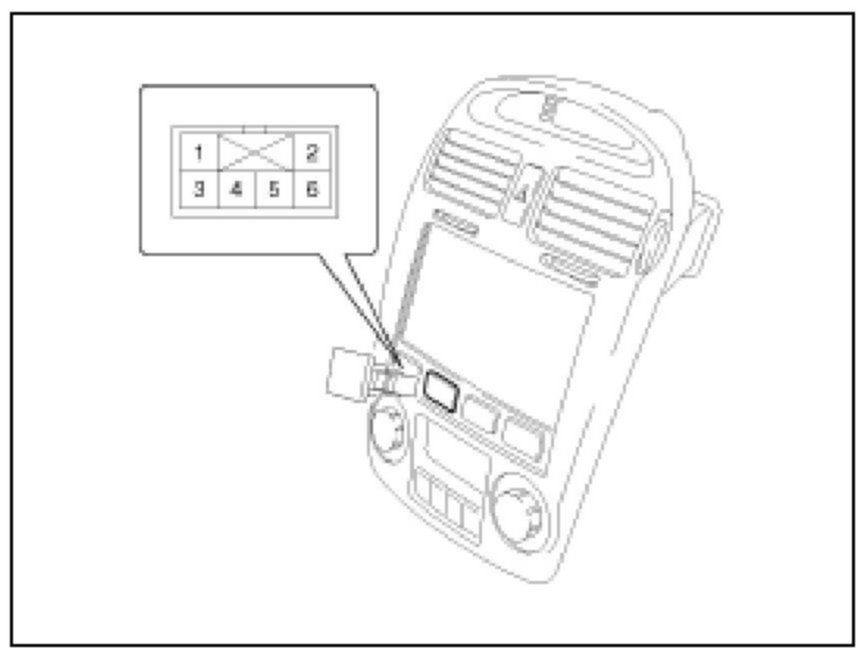

2. Remove the rear window defogger switch after removing to the center crash pad.

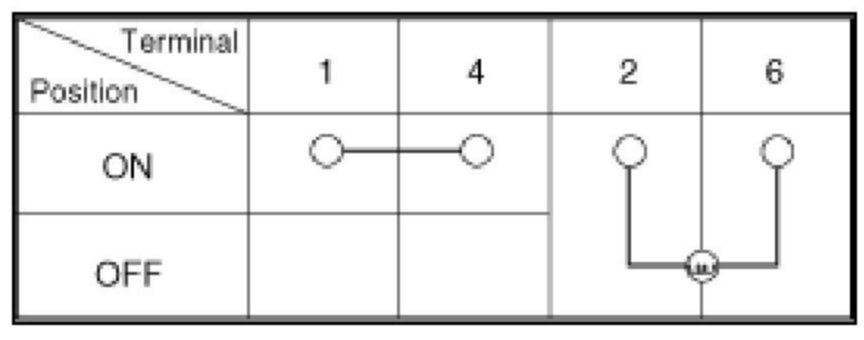

3. Using an ohmmeter, inspection the continuity between the terminals after removing to the switch connector.
