EVAP System Monitoring

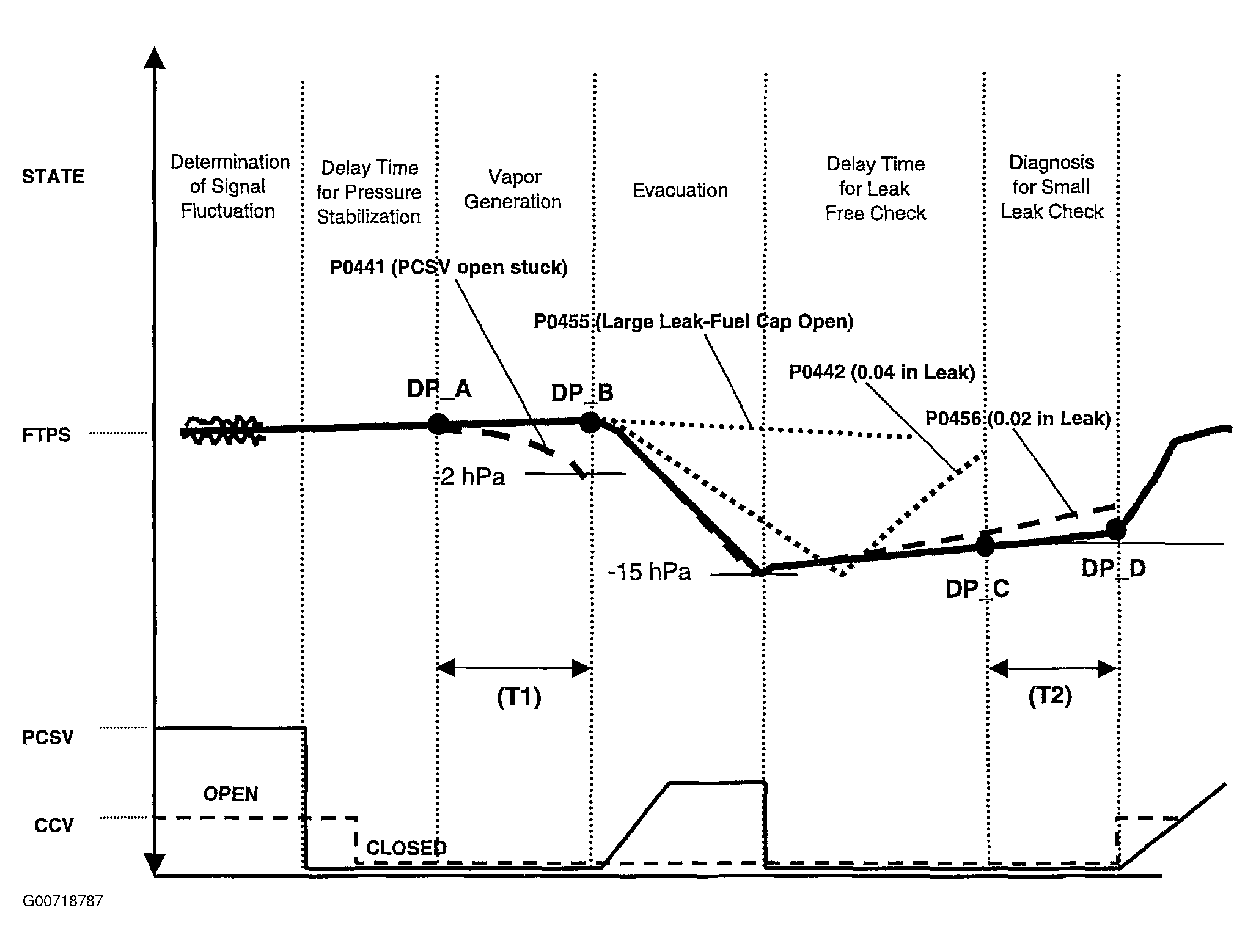

Fig 1: Illustrating EVAP System Monitoring
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
