DTC P0131: Linear O2 Sensor Circuit Low Input (Bank 1 Sensor 1)
>>
Schematic Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematic Diagram

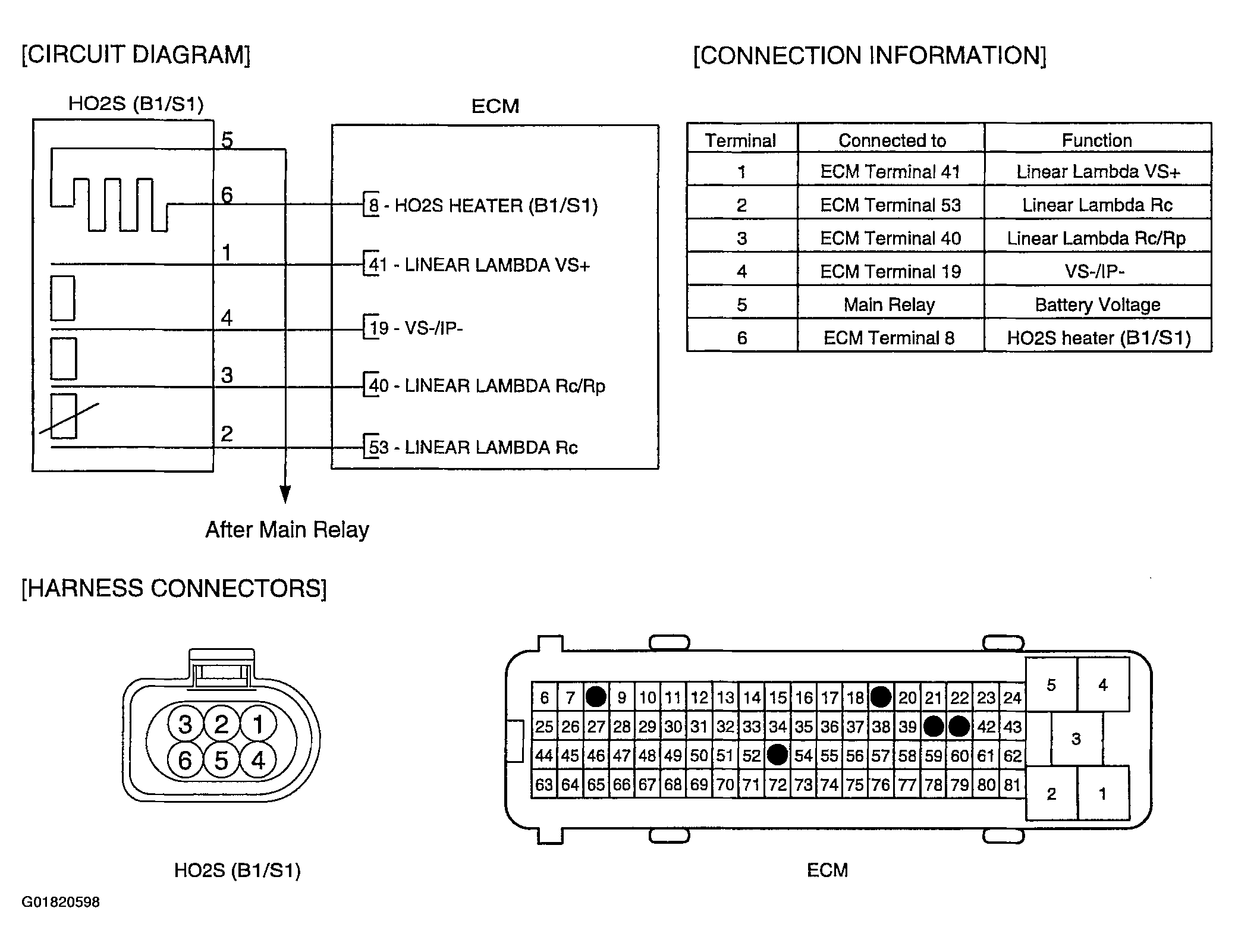

Fig 1: DTC P0131 Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
