DTC P0136: O2 Sensor Circuit Open Check (Bank 1 Sensor 2): DTC Detecting Condition

DTC Description
ECM sets DTC P0136 if the ECM detects that the rear HO2S signal line is open.
Conditions for Setting the DTC

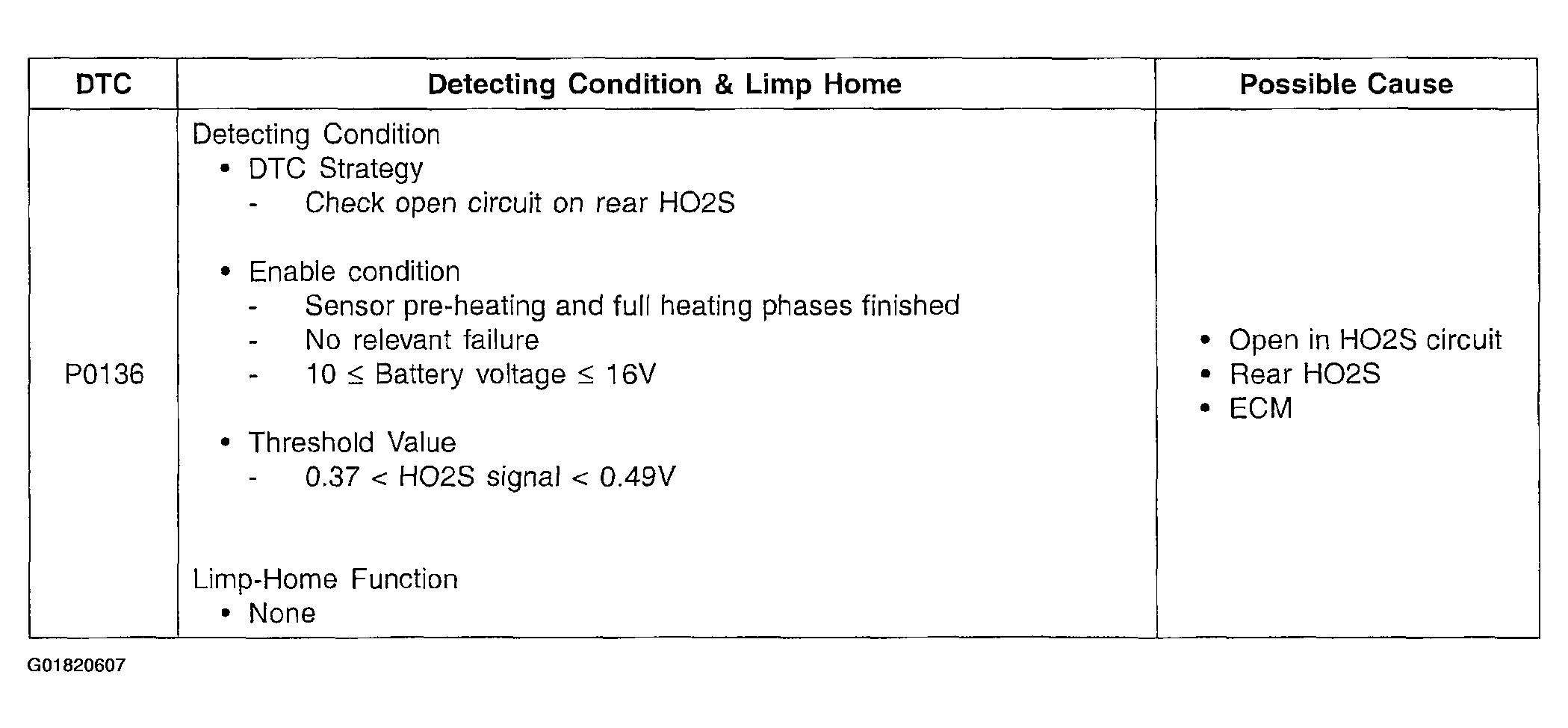

Fig 1: DTC P0136 Condition Chart
Courtesy of KIA MOTORS AMERICA, INC.
