DTC P0137: O2 Sensor Circuit Low Input (Bank 1 Sensor 2): DTC Detecting Condition

  1. DTC Description

    ECM sets DTC P0137 if the ECM detects signal voltage lower than the possible range of a properly operating rear heated oxygen sensor (HO2S).

  2. Conditions for Setting the DTC

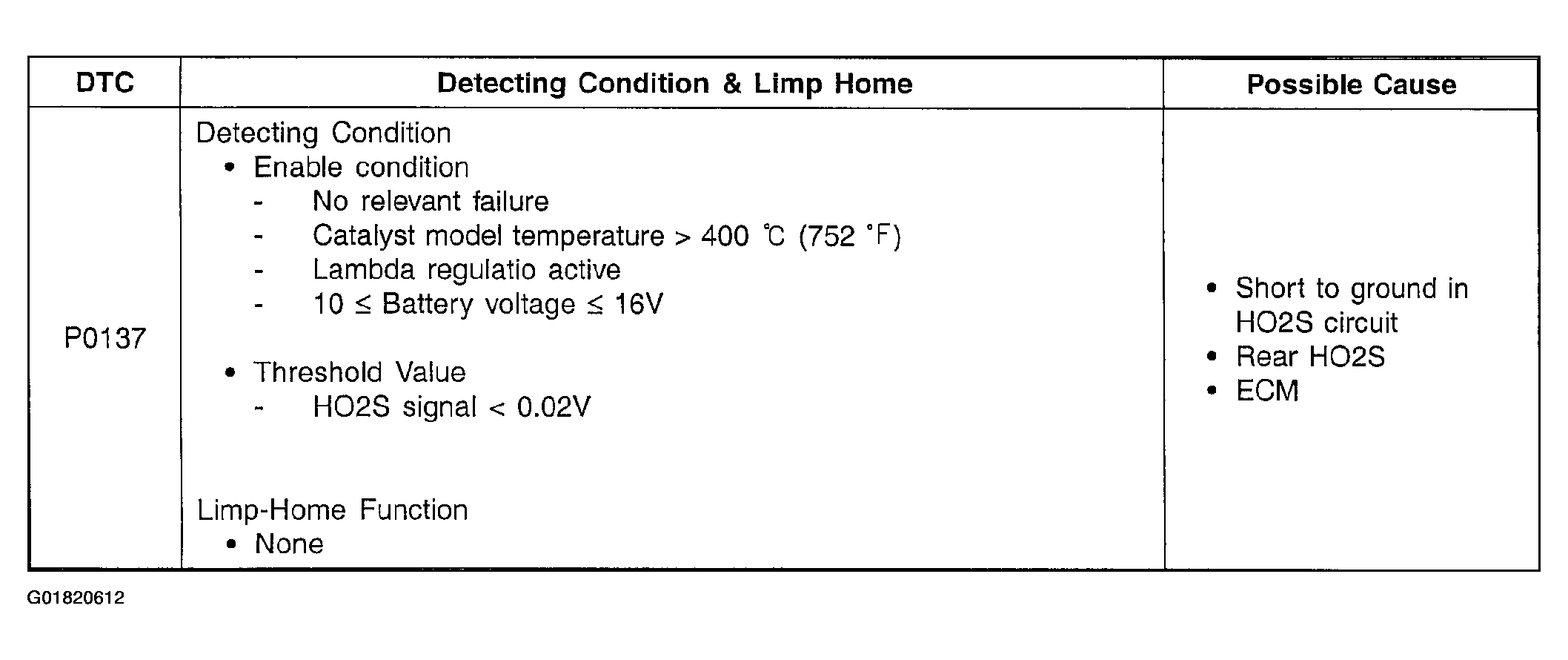

    Fig 1: DTC P0137 Condition Chart
    G01820612Courtesy of KIA MOTORS AMERICA, INC.
