DTC P0197: Engine Oil Temperature Sensor Circuit Low Input: DTC Detecting Condition

  1. DTC Description

    ECM sets DTC P0197 if the ECM detects signal voltage lower than the possible range of a properly operating OTS.

  2. Conditions for Setting the DTC

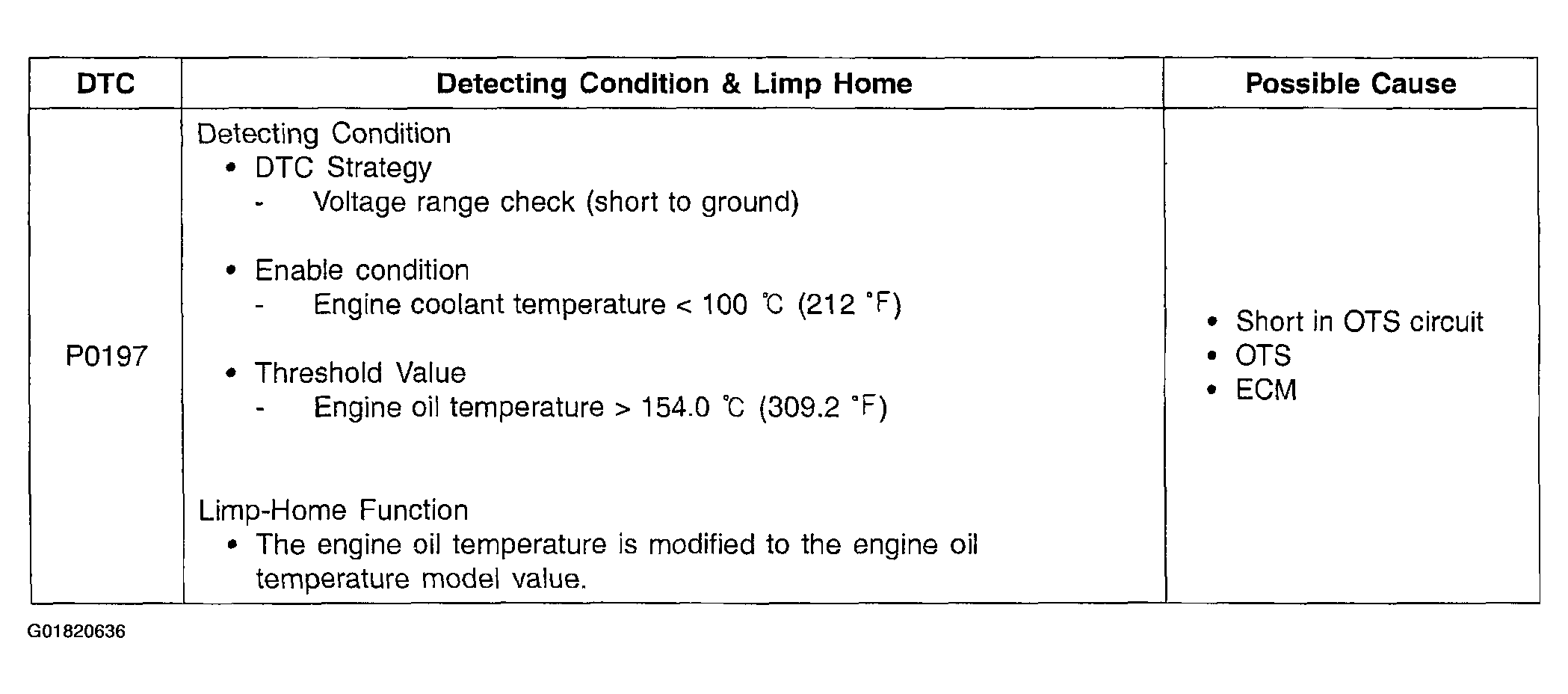

    Fig 1: DTC P0197 Condition Chart
    G01820636Courtesy of KIA MOTORS AMERICA, INC.
