DTC P0452: EVAP Emission Control System Pressure Sensor Low Input: DTC Detecting Condition

  1. DTC Description, ECM sets DTC P0452 if the ECM detects signal voltage lower than the possible range of a properly operating FTPS.
  2. Conditions for Setting the DTC

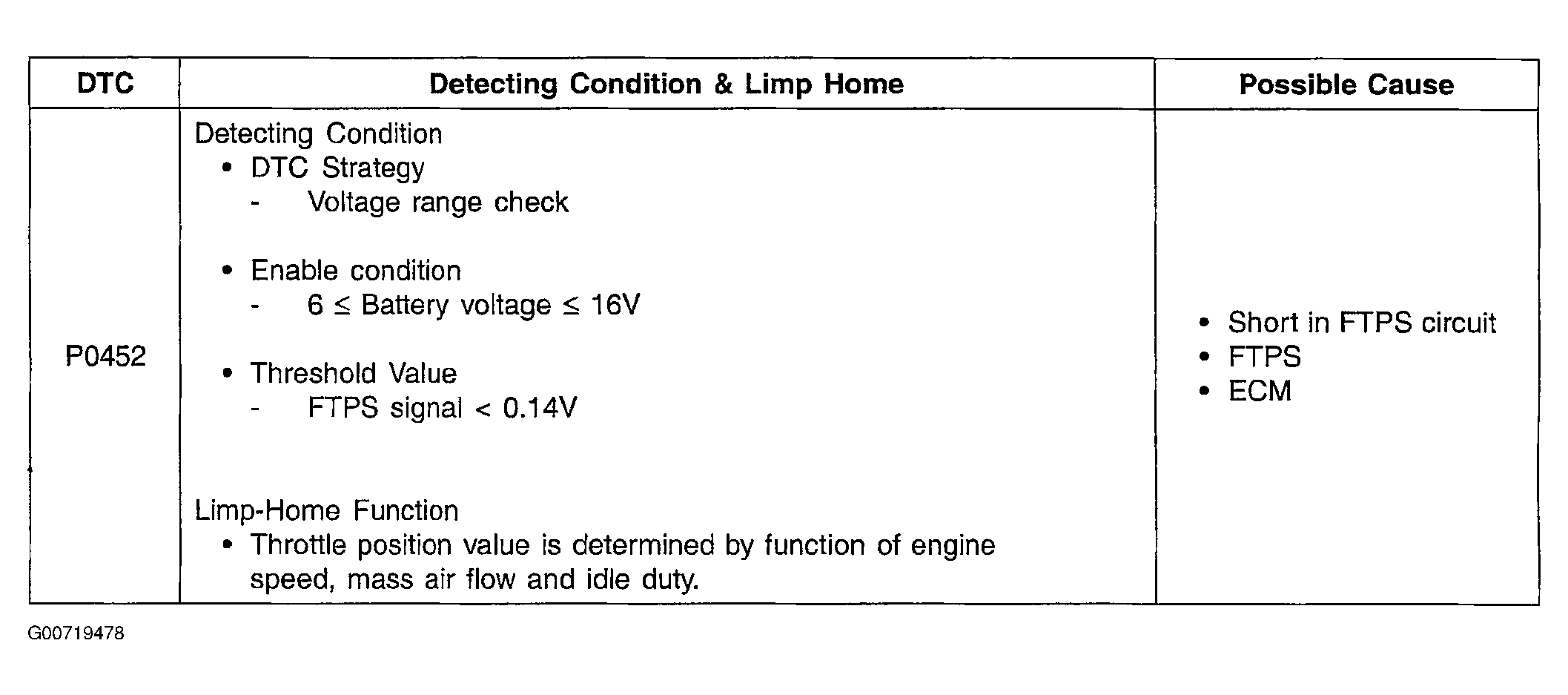

    Fig 1: DTC P0452 Condition Chart
    G00719478Courtesy of KIA MOTORS AMERICA, INC.
