DTC P0453: EVAP Emission Control System Pressure Sensor High Input: DTC Detecting Condition

  1. DTC Description, ECM sets DTC P0453 if the ECM detects signal voltage higher than the possible range of a properly operating FTPS.
  2. Conditions for Setting the DTC

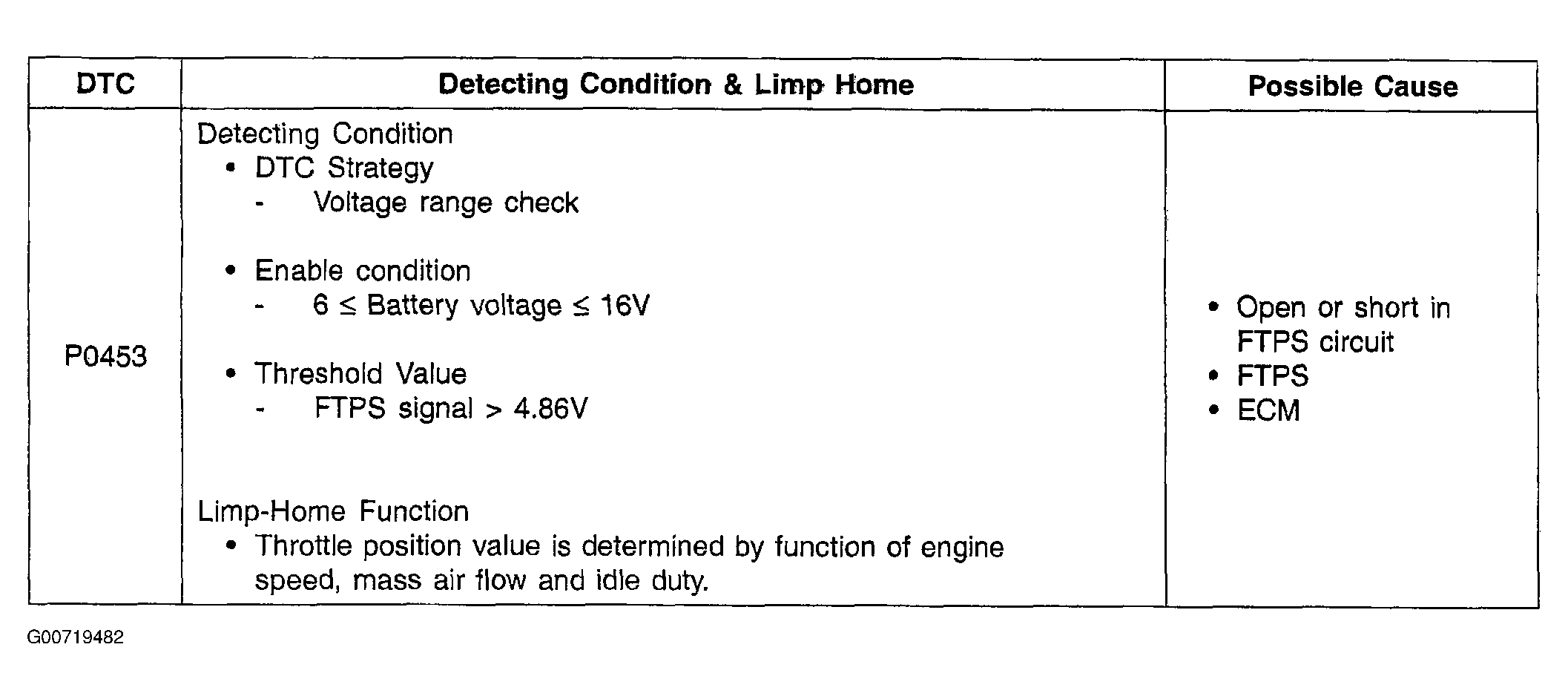

    Fig 1: DTC P0453
    G00719482Courtesy of KIA MOTORS AMERICA, INC.
