DTC P2271: O2 Sensor Signal Stuck Rich (Bank 1 Sensor 2): DTC Detecting Condition
- DTC Description, the ECM tests rear O2 sensor signal level during the time the lambda target point is being shifted to lean to determine rear O2 sensor signal stuck. The ECM sets DTC P2271 if rear O2 sensor signal is above the predetermined threshold while target lambda point is being shifted to the predetermined value. If the same error code is set in the next driving cycle, the ECM illuminates the MIL.

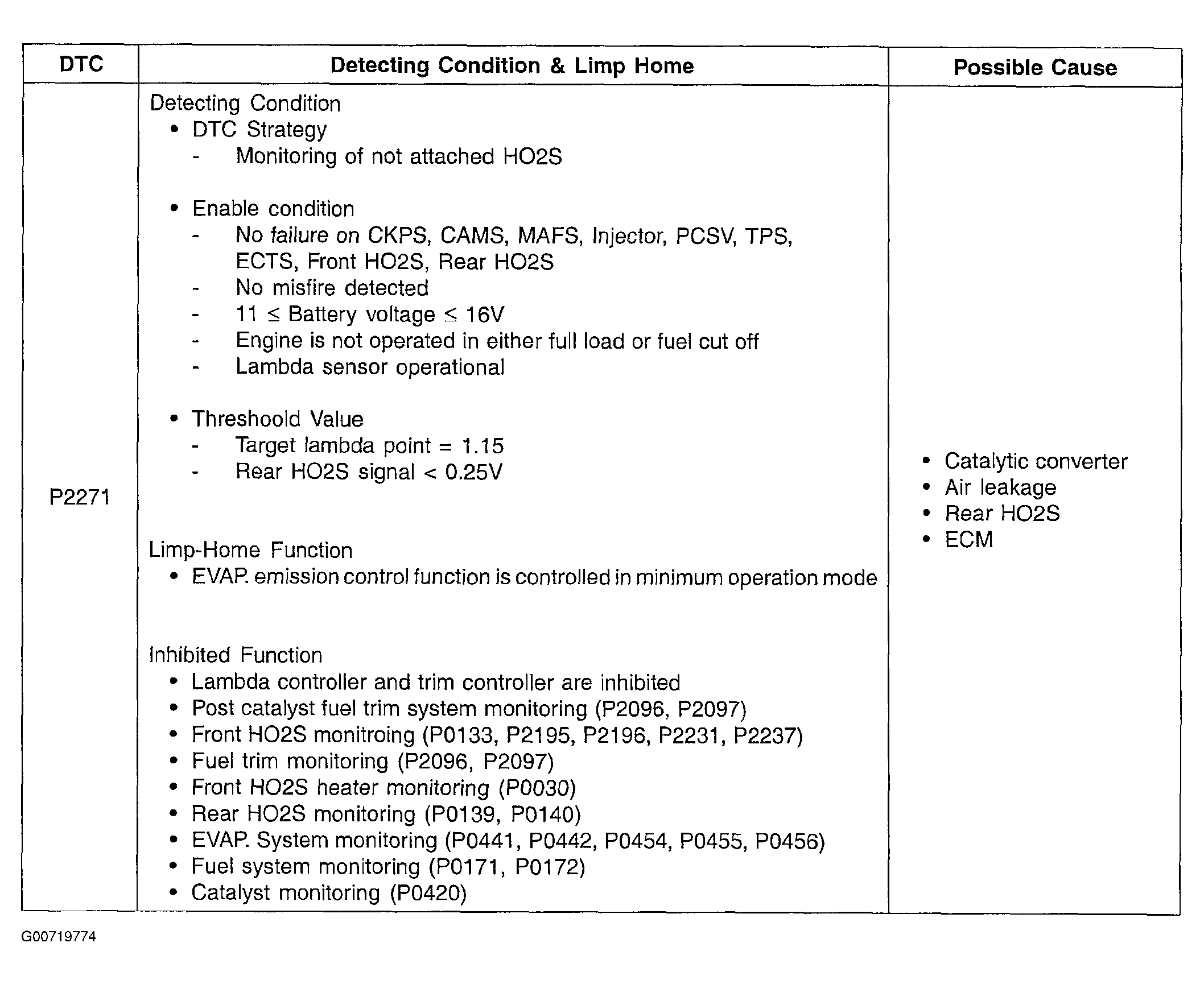

- Conditions for Setting the DTC
Courtesy of KIA MOTORS AMERICA, INC.
