Evaporative Emission Control System: Components: Notes

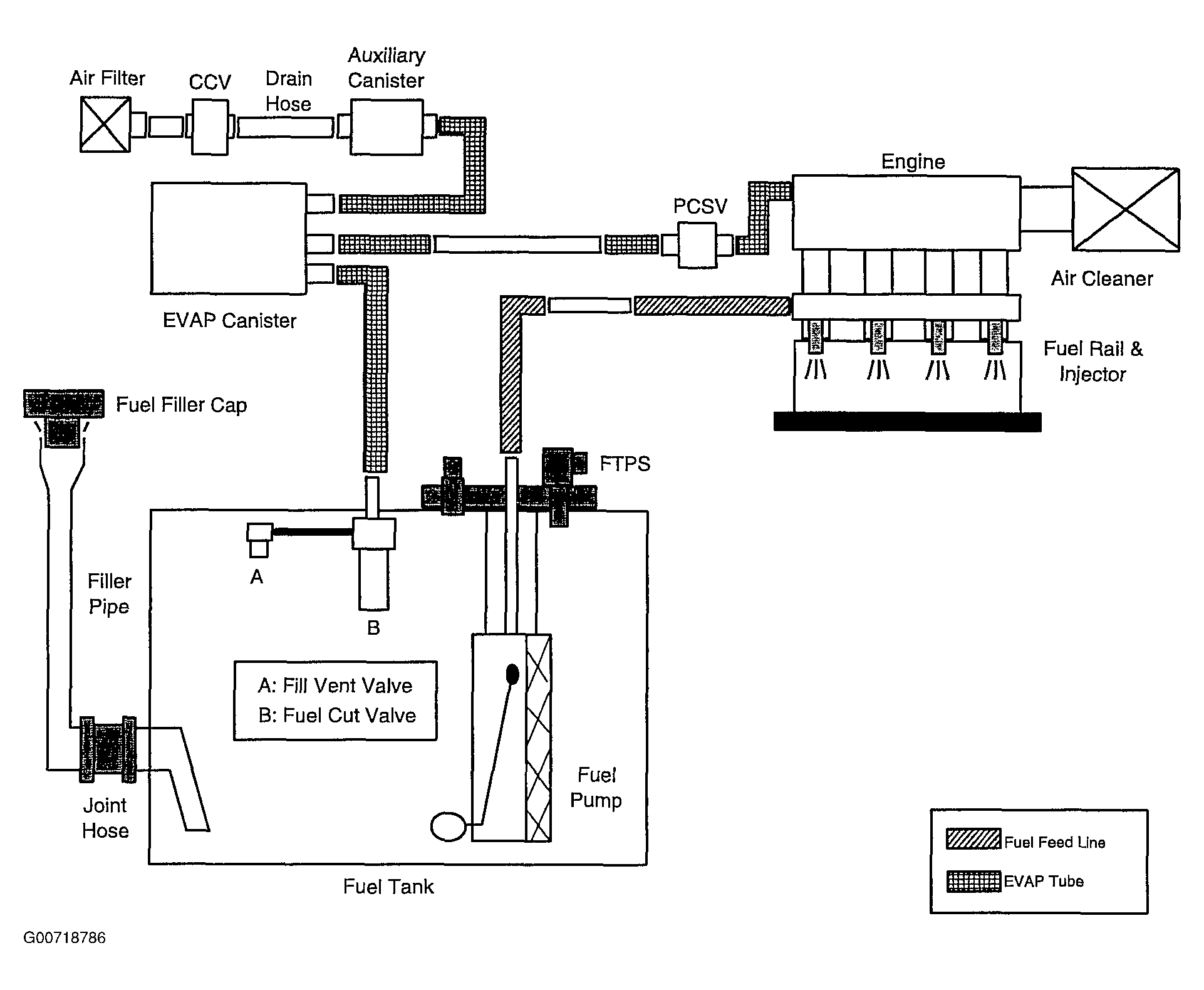

Fig 1: Illustrating EVAP System Components
G00718786Courtesy of KIA MOTORS AMERICA, INC.
