Emission Control System - 2.0L: General: Components

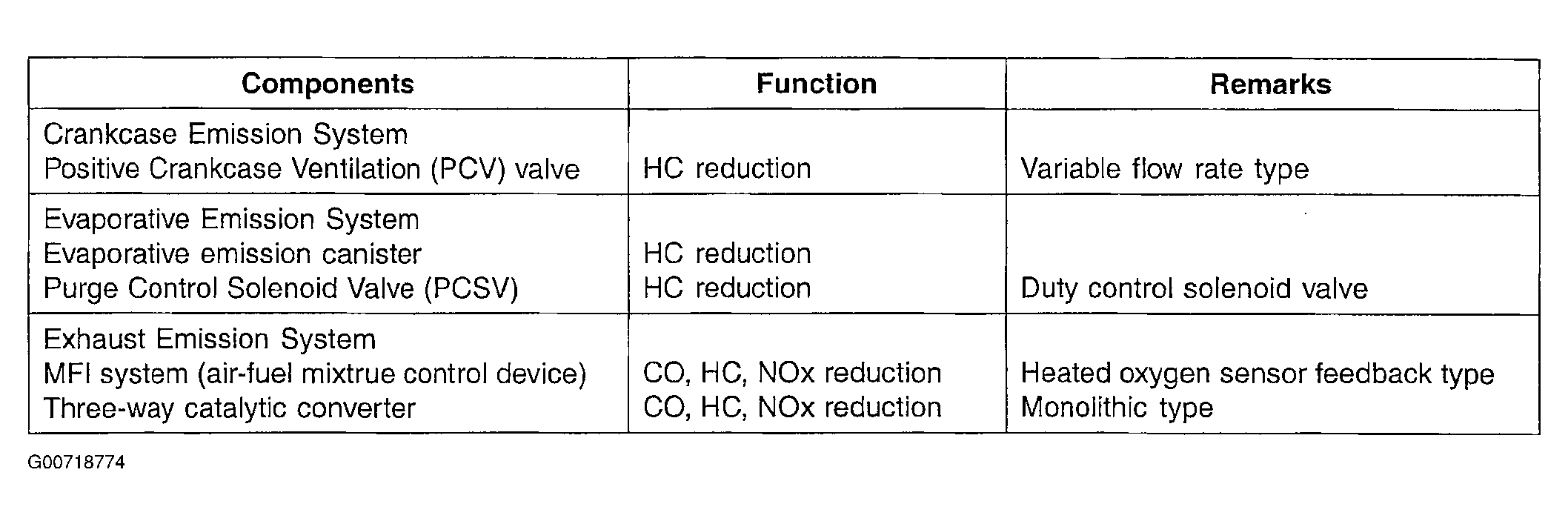

Fig 1: Illustrating Components
G00718774Courtesy of KIA MOTORS AMERICA, INC.

MFI: Multiport Fuel Injection

EVAP: Evaporative Emission
