Schematic Drawing

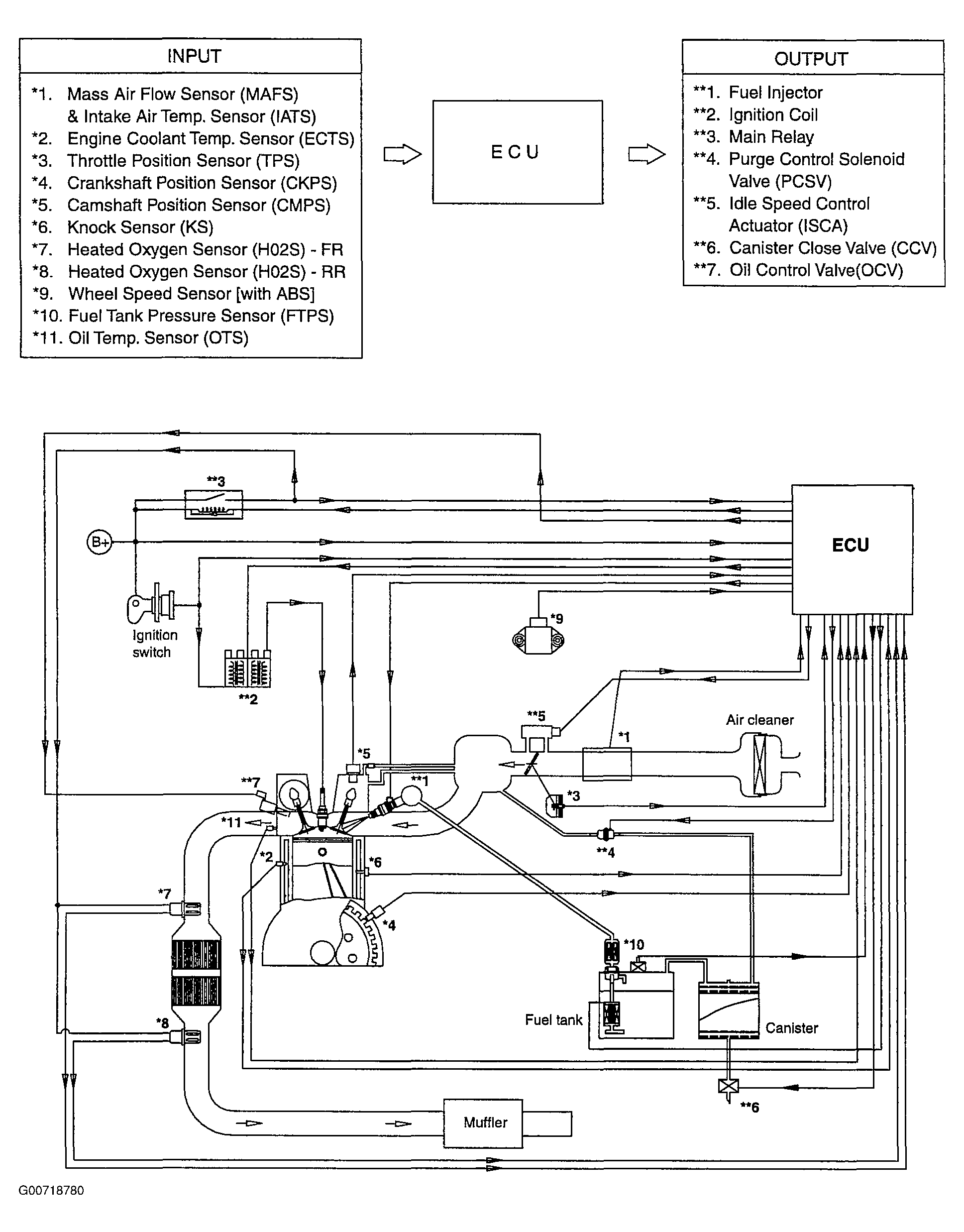

Fig 1: Illustrating Schematic Drawing
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
