DTC P0125: Insufficient Coolant Temperature For Closed Loop Fuel Control: Specification
Fig 1: DTC P0125 Thermostat Specification
Courtesy of KIA MOTORS AMERICA, INC.

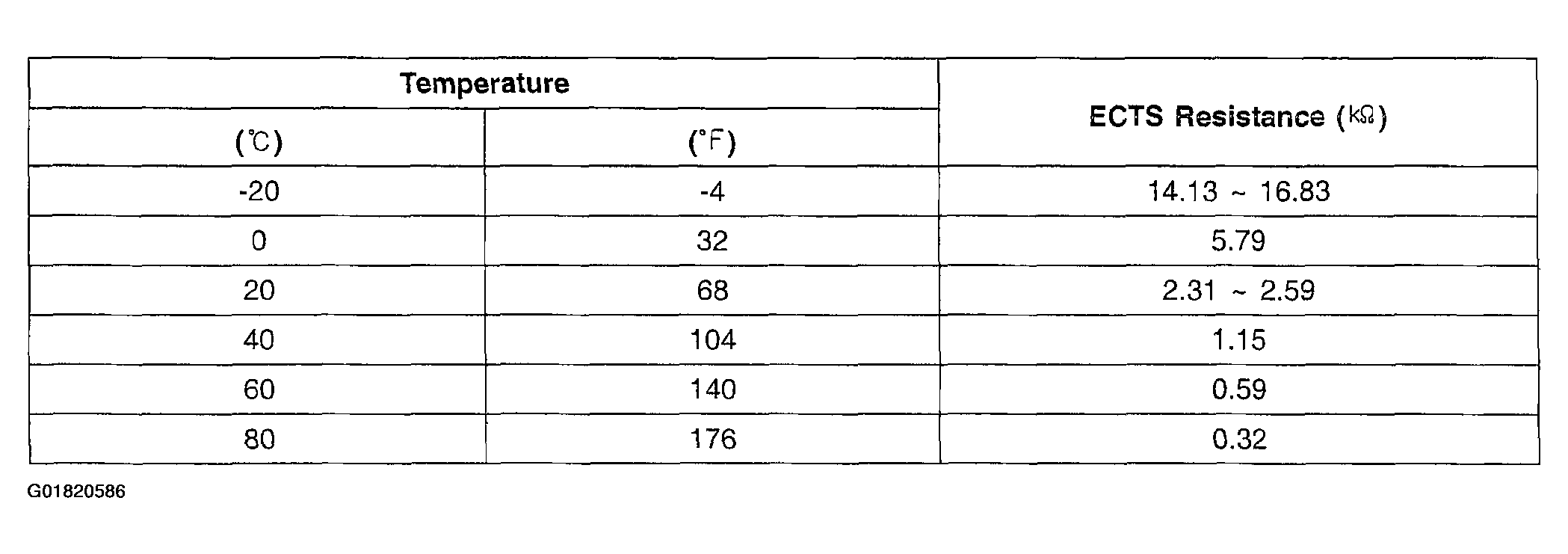

Fig 2: DTC P0125 ECTS Resistance Specification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
