Repair Procedures: Inspection

  1. Disconnect the connector under the steering column.
  2. Check the switch continuity between the terminals.
  3. If continuity is not as specified, replace the switch.

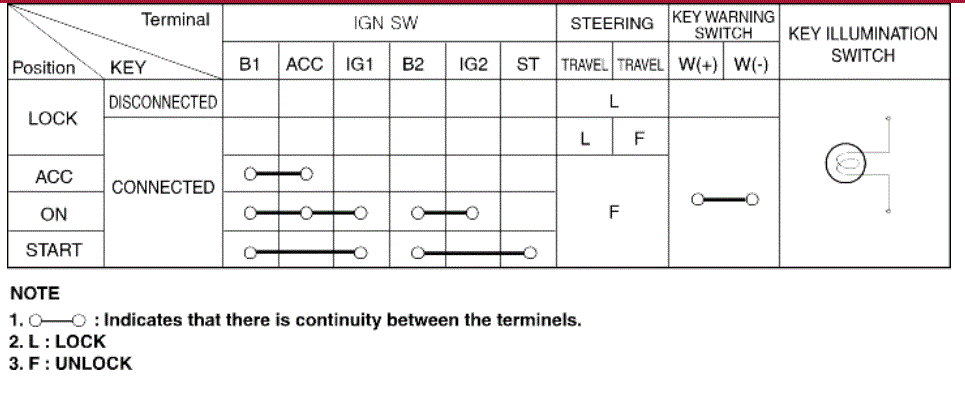

Fig 1: Ignition Switch Terminal Continuity Chart
G00573936Courtesy of KIA MOTORS AMERICA, INC.

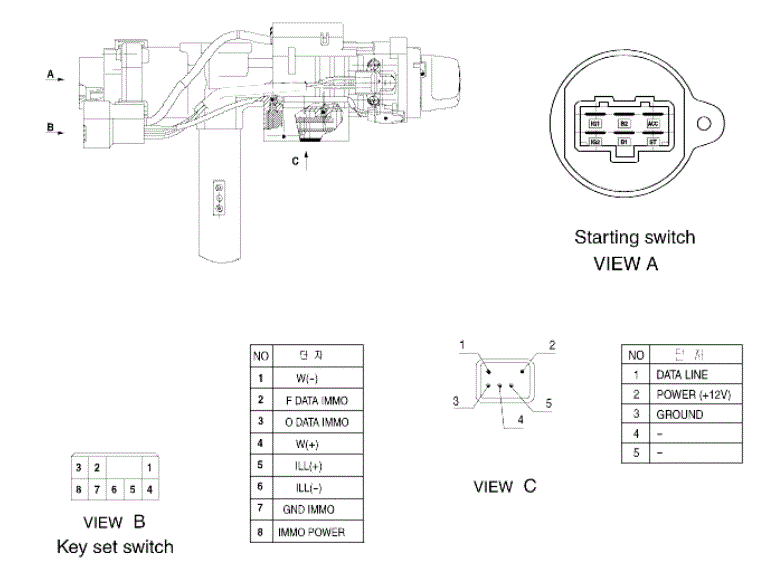

Fig 2: Ignition Switch Connector Terminals
G00573937Courtesy of KIA MOTORS AMERICA, INC.
