Signal Circuit Inspection

Check signal circuit open inspection
1. Ignition "OFF".
2. Disconnect "A/T SOLENOID VALVE" connector and "PCM" connector.
3. [2.4L]
  Measure resistance between terminal "4" of the ATM SOLENOID VALVE harness connector and terminal "17" of the TCM (PCM) harness connector.

  [2.7L]

  Measure resistance between terminal "4" of the ATM SOLENOID VALVE harness connector and terminal "45" of the PCM/TCM harness connector.

  Specification: approx. 0 Ω

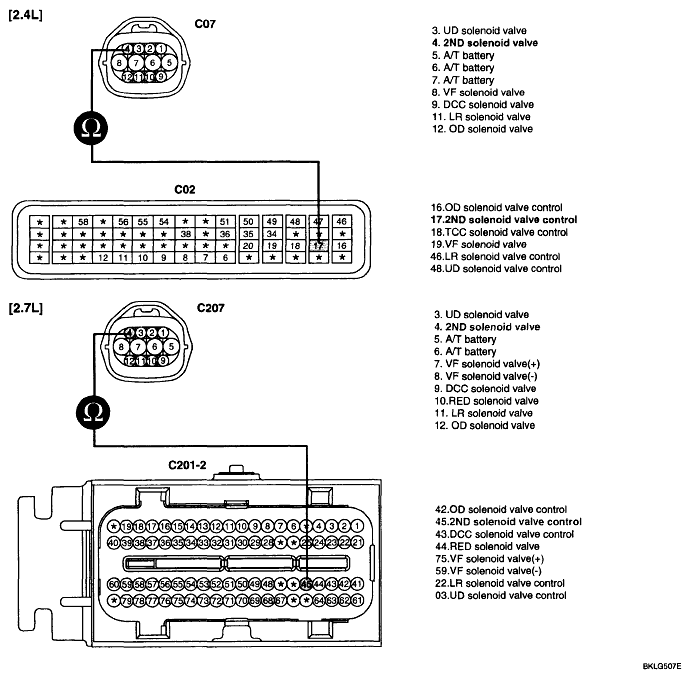

  Fig 1: Measuring Resistance Between Terminal 4 Of ATM Solenoid Valve Harness Connector And Terminal 45
  Courtesy of KIA MOTORS AMERICA, INC.
4. Is resistance within specifications?
  YES : --> Go to 2 "Check signal circuit short inspection" procedure.

  NO : --> Check for open in harness. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
Check signal circuit short inspection
1. Ignition "OFF".
2. Disconnect "A/T SOLENOID VALVE" connector and "PCM/TCM" connector.
3. Measure resistance between terminal "4" of the ATM SOLENOID VALVE harness and chassis ground.

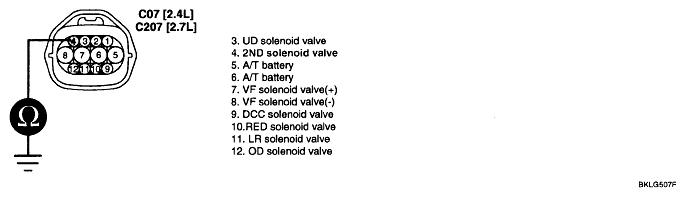

  Fig 2: Measuring Resistance Between Terminal 4 Of ATM Solenoid Valve Harness And Chassis Ground
  Courtesy of KIA MOTORS AMERICA, INC.
4. Is resistance within specifications?
  YES : --> Go to "COMPONENT INSPECTION " procedure.

  NO : --> Check for short to ground in harness. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
