Supplemental Restraint System Control Module Harness Connector End Views & Functions

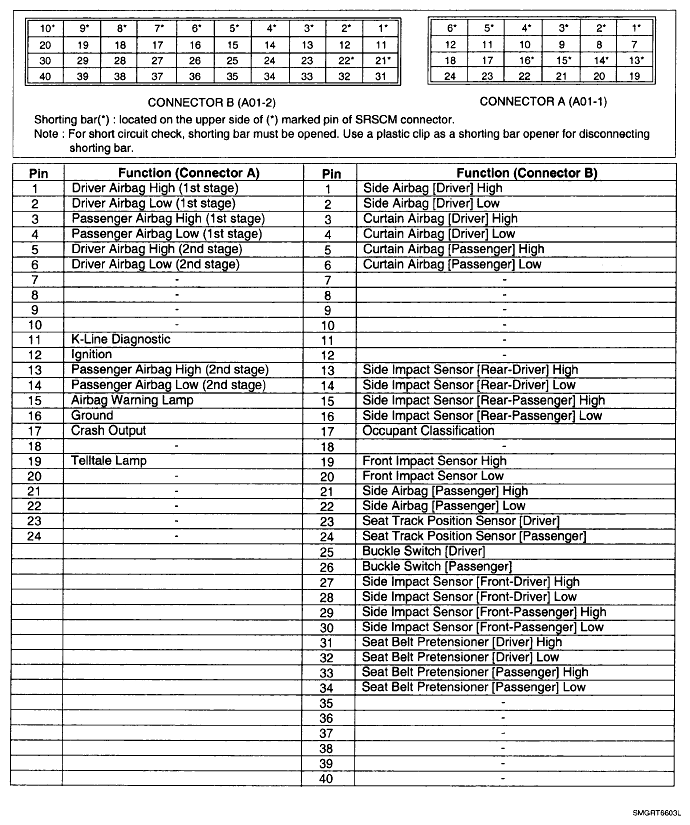

Fig 1: Supplemental Restraint System Control Module Harness Connector End Views & Functions
G04805719Courtesy of KIA MOTORS AMERICA, INC.
