Engine Control System/Fuel System -- Optima & MAGENTIS (CANADIAN) 2.4L (M/T) (VIN 6)
>>
MFI Control System (VIN 6)
>>
HEATED OXYGEN SENSOR (HO2S) - ZIRCONIA (ZrO2) (VIN 6)
>>
Circuit Diagram (Ho2S) (VIN 6)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram (Ho2S) (VIN 6)

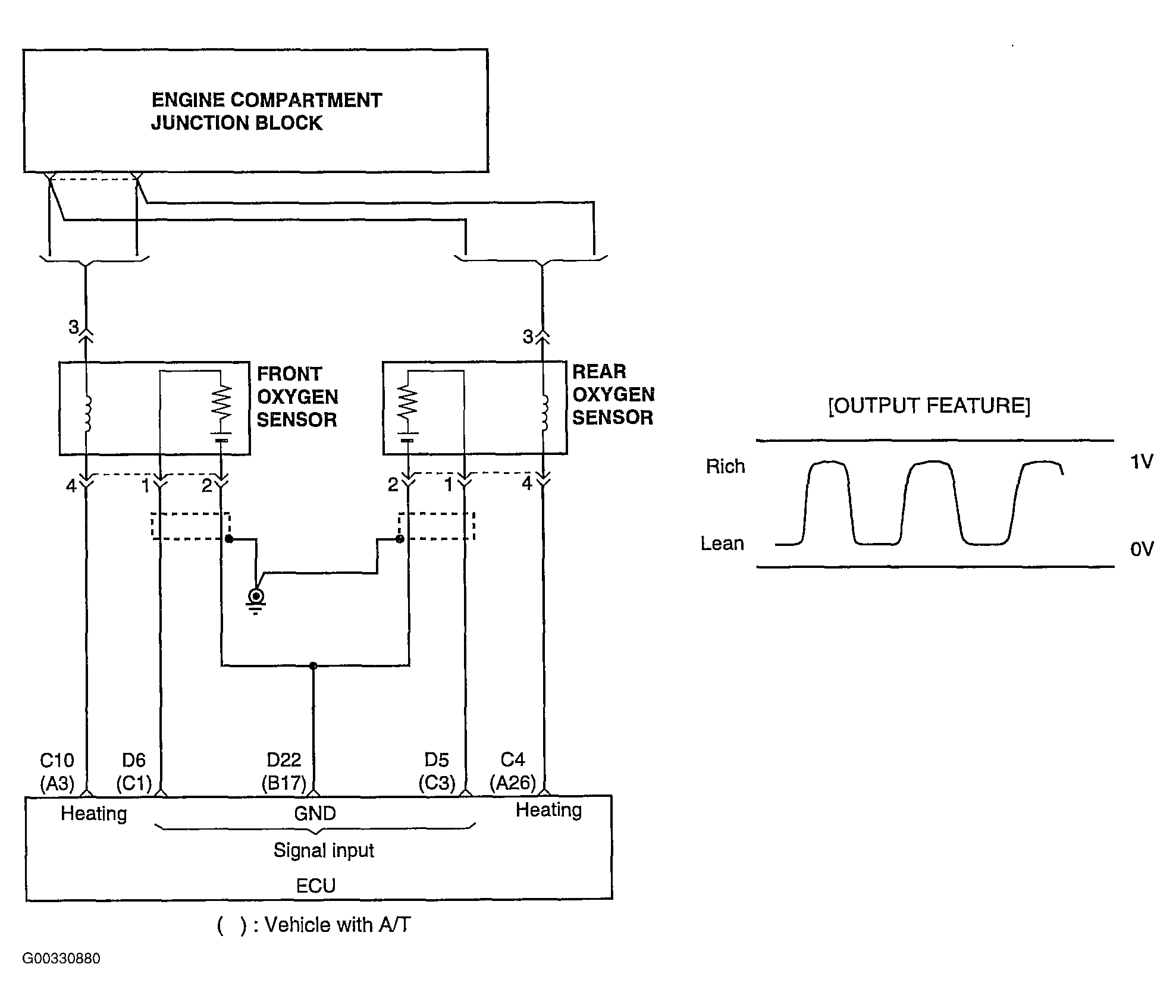

Fig 1: Identifying Heated Oxygen Sensor (HO2S) Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
