DTC B1448 Passenger Occupant Classification Sensor Defect; DTC B1449 Passenger Occupant Classification (OC) System Communication Error; DTC B1450 Passenger Occupant Classification (OC) System Wrong Id
>>
Schematic Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematic Diagram

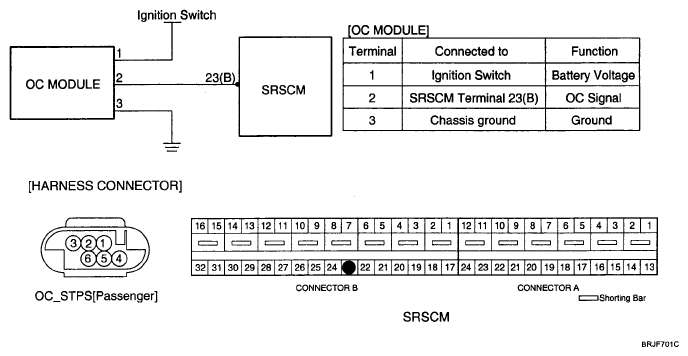

Fig 1: Passenger Occupant Classification Sensor Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
