Cooling System: Component

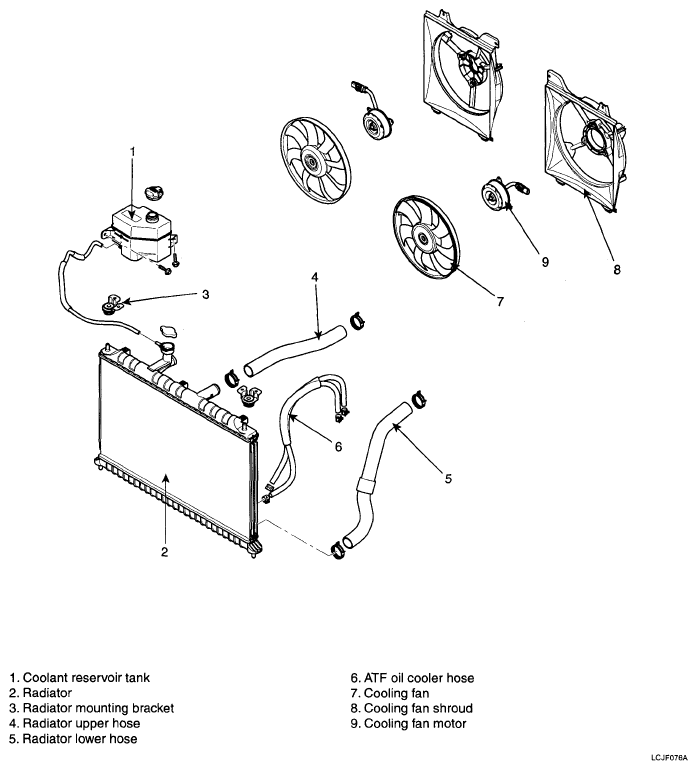

Fig 1: Identifying Cooling System Components And Tightening Torques (1 Of 2)
G04861829Courtesy of KIA MOTORS AMERICA, INC.

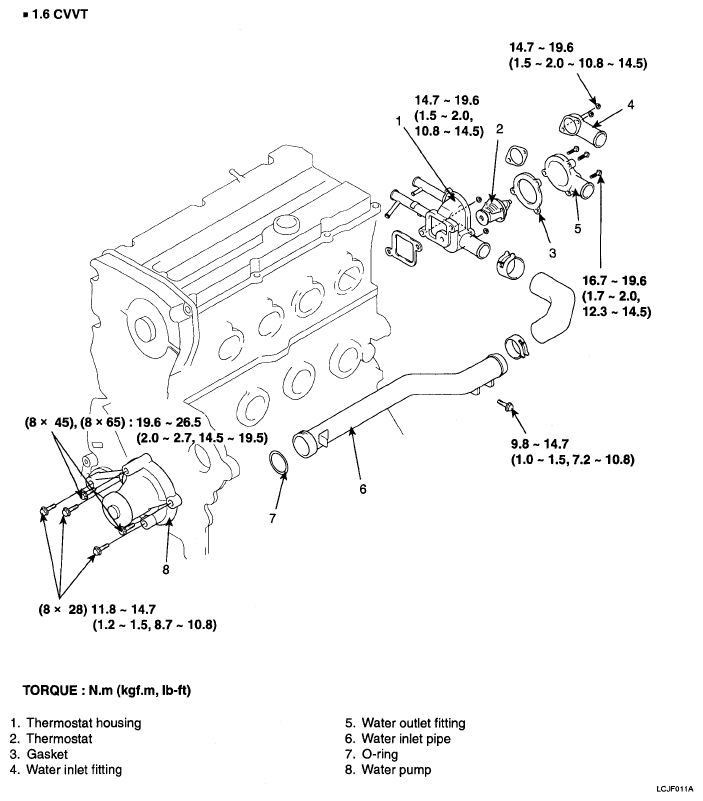

Fig 2: Identifying Cooling System Components And Tightening Torques (2 Of 2)
G04861830Courtesy of KIA MOTORS AMERICA, INC.
