Cooling System: Installation: Radiator

Install the radiator.
Install the radiator upper bracket (A, B)-
Tightening torque :

6.9~10.8N.m (0.7~1.1kgf.m, 5.1~8.0lb-ft)

Fig 1: Identifying Radiator Upper Bracket
Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Identifying Radiator Upper Bracket
Courtesy of KIA MOTORS AMERICA, INC.
Install the cooling fan mounting bolts (A, B).
Tightening torque :

6.9~10.8N.m (0.7~1.1kgf.m, 5.1~8.0lb-ft)
- 2 Fan type

  Fig 3: Identifying Cooling Fan Mounting Bolt
  Courtesy of KIA MOTORS AMERICA, INC.
- 2 Fan type

  Fig 4: Identifying Cooling Fan Mounting Bolt
  Courtesy of KIA MOTORS AMERICA, INC.
Connect the fan motor connector (A, B).
- 2 Fan type

  Fig 5: Identifying Fan Motor Connector
  Courtesy of KIA MOTORS AMERICA, INC.
- 2 Fan type

  Fig 6: Identifying Fan Motor Connector
  Courtesy of KIA MOTORS AMERICA, INC.
Install the upper radiator hose (A) and lower radiator hose (B).
Install the ATF (Automatic Transaxle Fluid) oil cooler hoses (C).

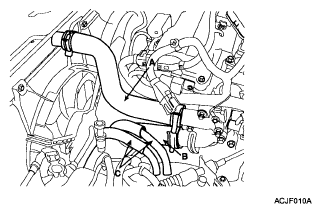

Fig 7: Identifying ATF Oil Cooler Hoses
Courtesy of KIA MOTORS AMERICA, INC.
Fill with engine coolant.
Start engine and check for leaks.
