Timing Belt: Component

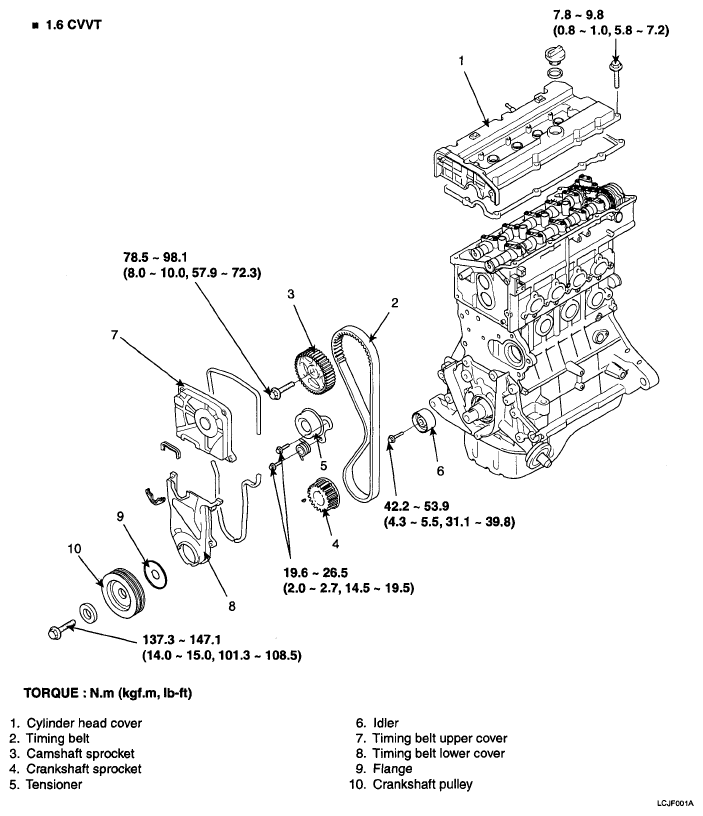

Fig 1: Identifying Timing Belt Components And Tightening Torques
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
