Body Control Module: Service and Repair

BODY CONTROL MODULE REPLACEMENT
1. Disconnect the negative (-) battery terminal.

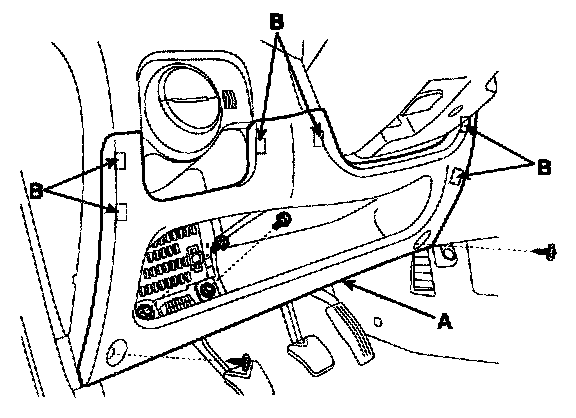

2. Remove the crash pad lower panel (A). Take care of fixing clips (B).

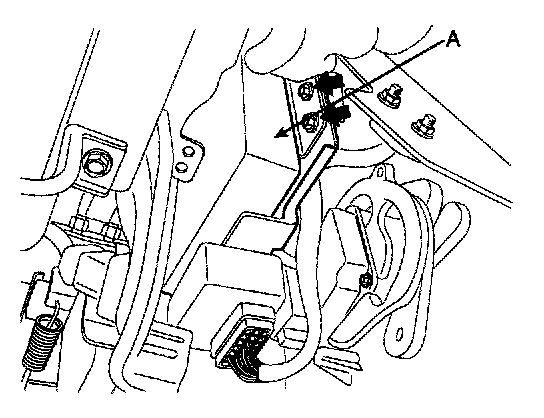

3. Remove the body control module (A) after loosening 2 nuts.
4. Installation is the reverse of removal.
