Spark Plug: Service and Repair

INSPECT SPARK PLUG

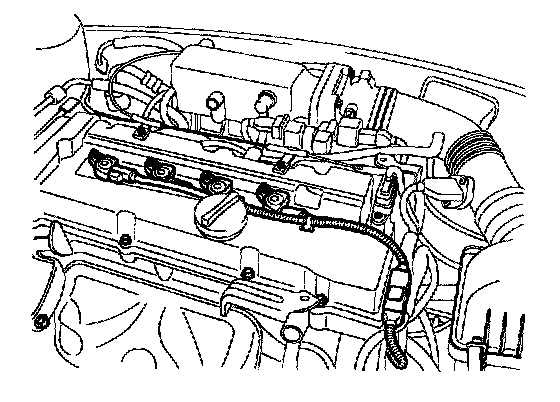

1. Remove the ignition coil with bolt.

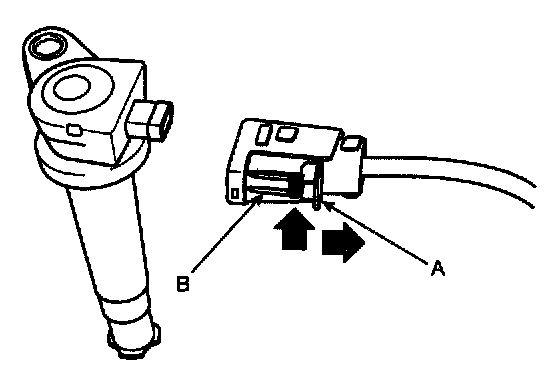

NOTE: When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).

2. Using a spark plug socket, remove the spark plug.

CAUTION: Be careful that no contaminates enter through the spark plug holes.

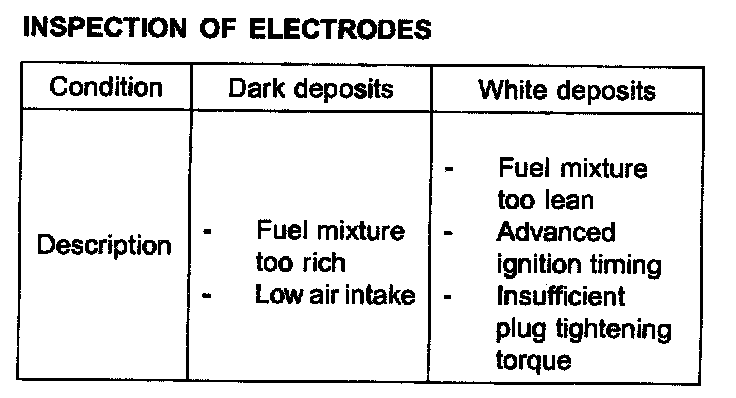

Inspection Of Electrodes:

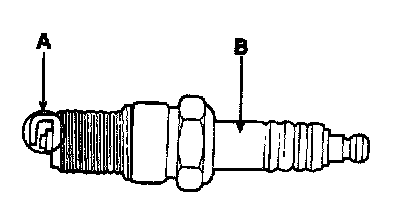

3. Inspect the electrodes (A) and ceramic insulator (B).

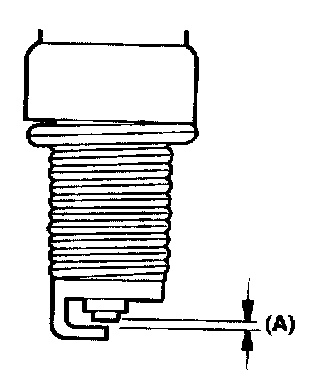

4. Check the electrode gap (A).

Standard: 1.0 - 1.1 mm (0.0394 - 0.0433 in.)
