Ignition System
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Ignition System

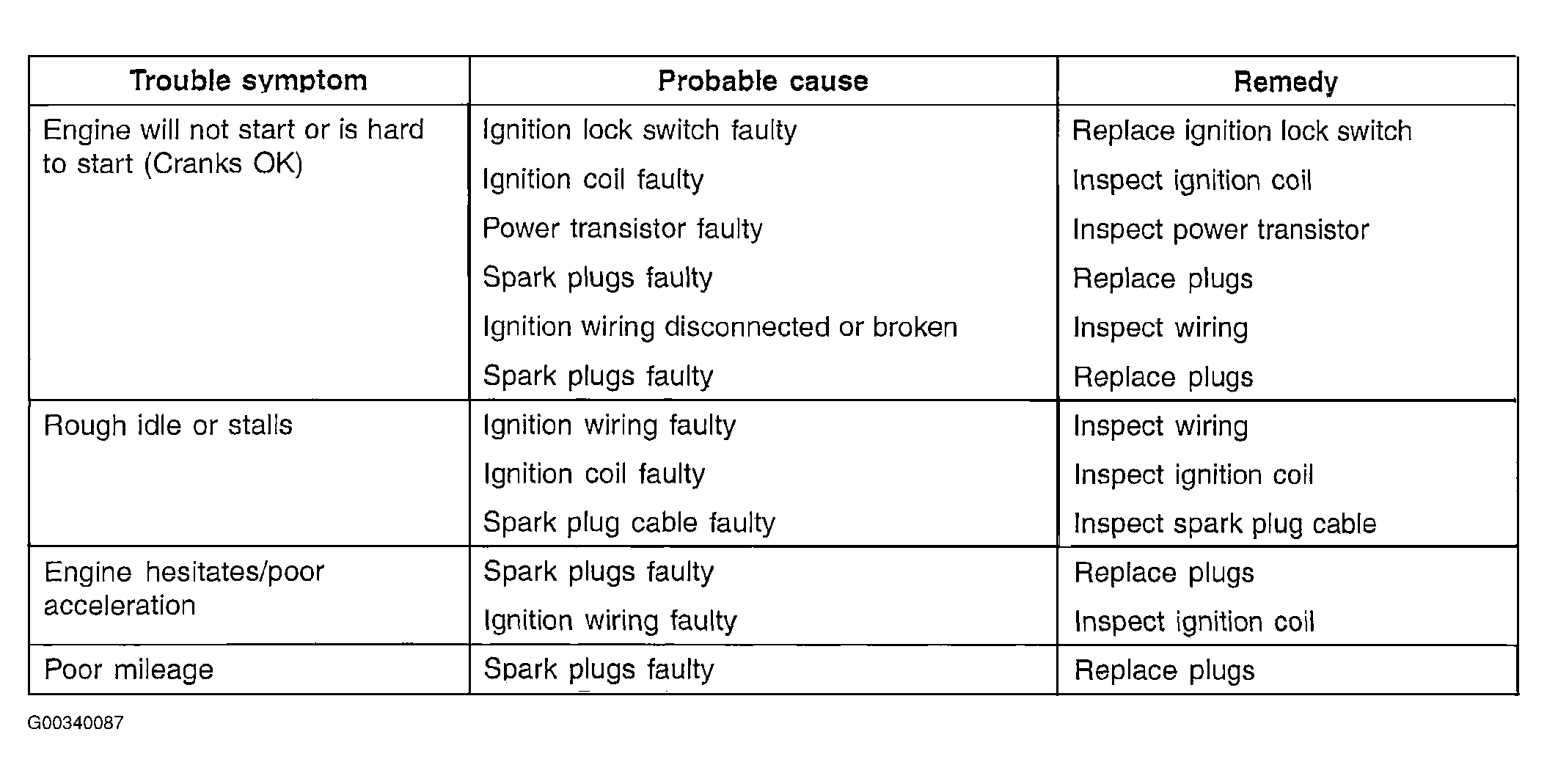

Fig 1: Ignition System Troubleshooting Table
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
