Control System Diagram: Notes

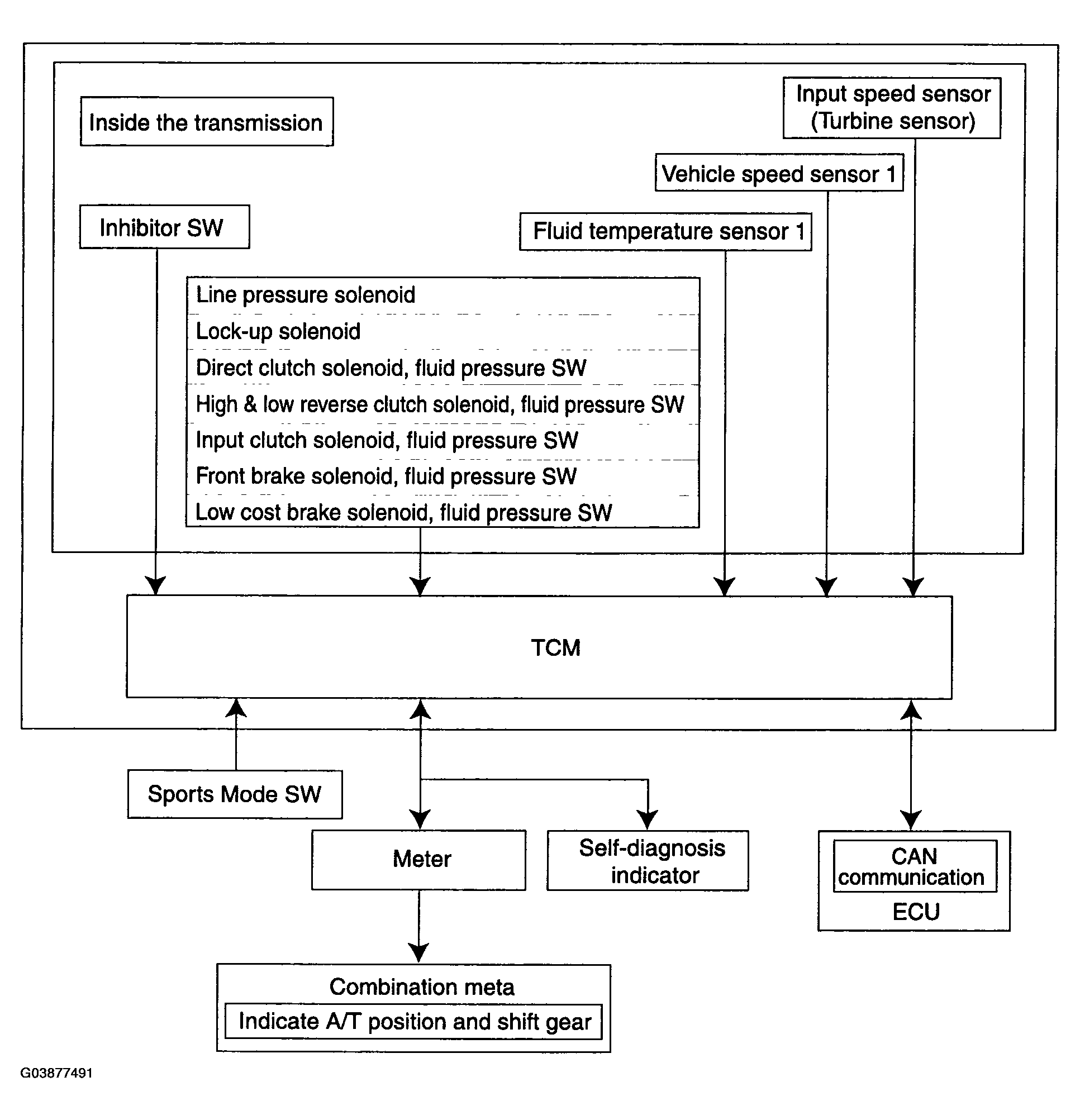

Fig 1: Control System Diagram

G03877491

Courtesy of KIA MOTORS AMERICA, INC.
