Diagnosis Flow: Notes

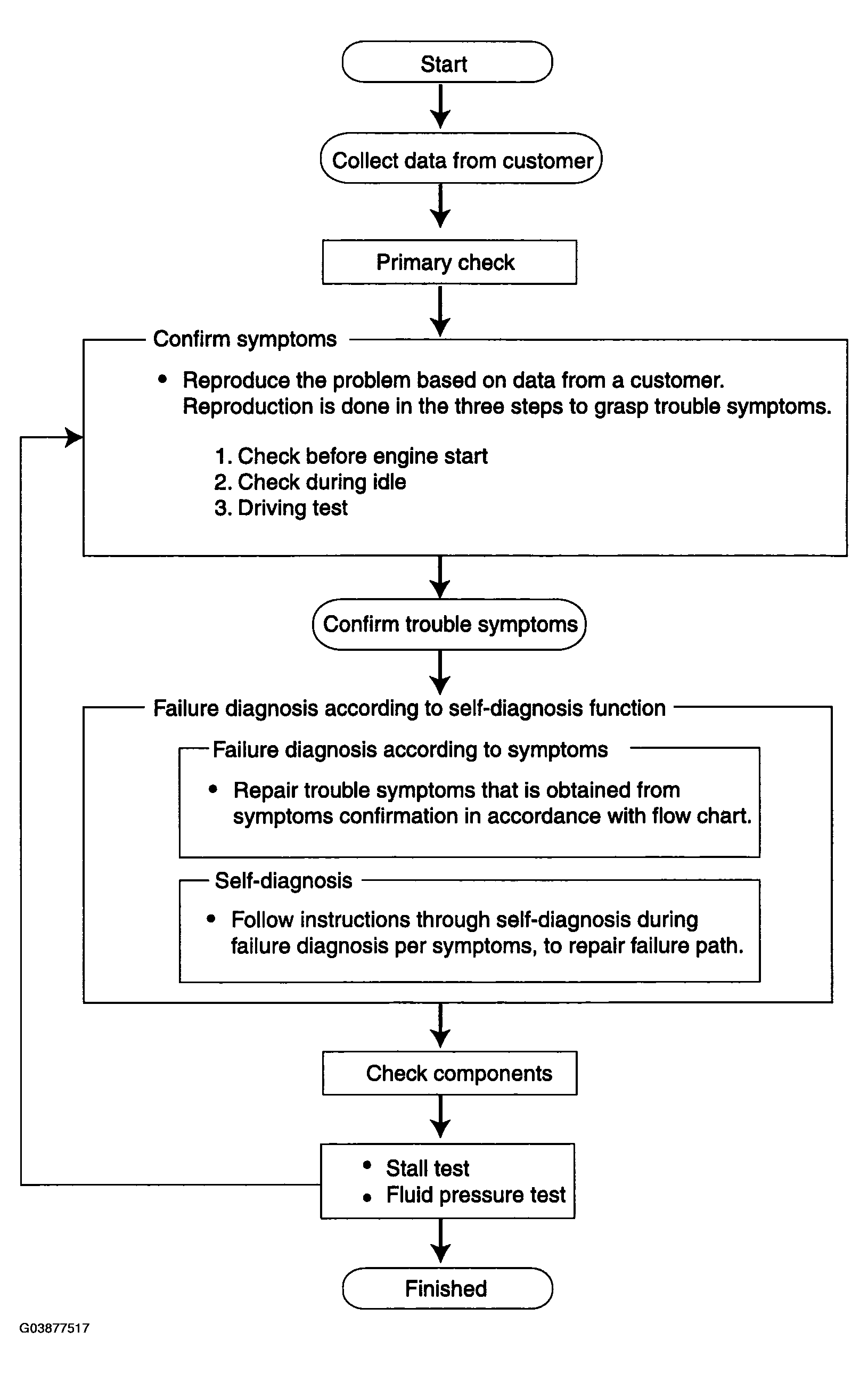

Fig 1: Diagnosis Flow Chart
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
