Automatic Transaxle System: Operation: Notes

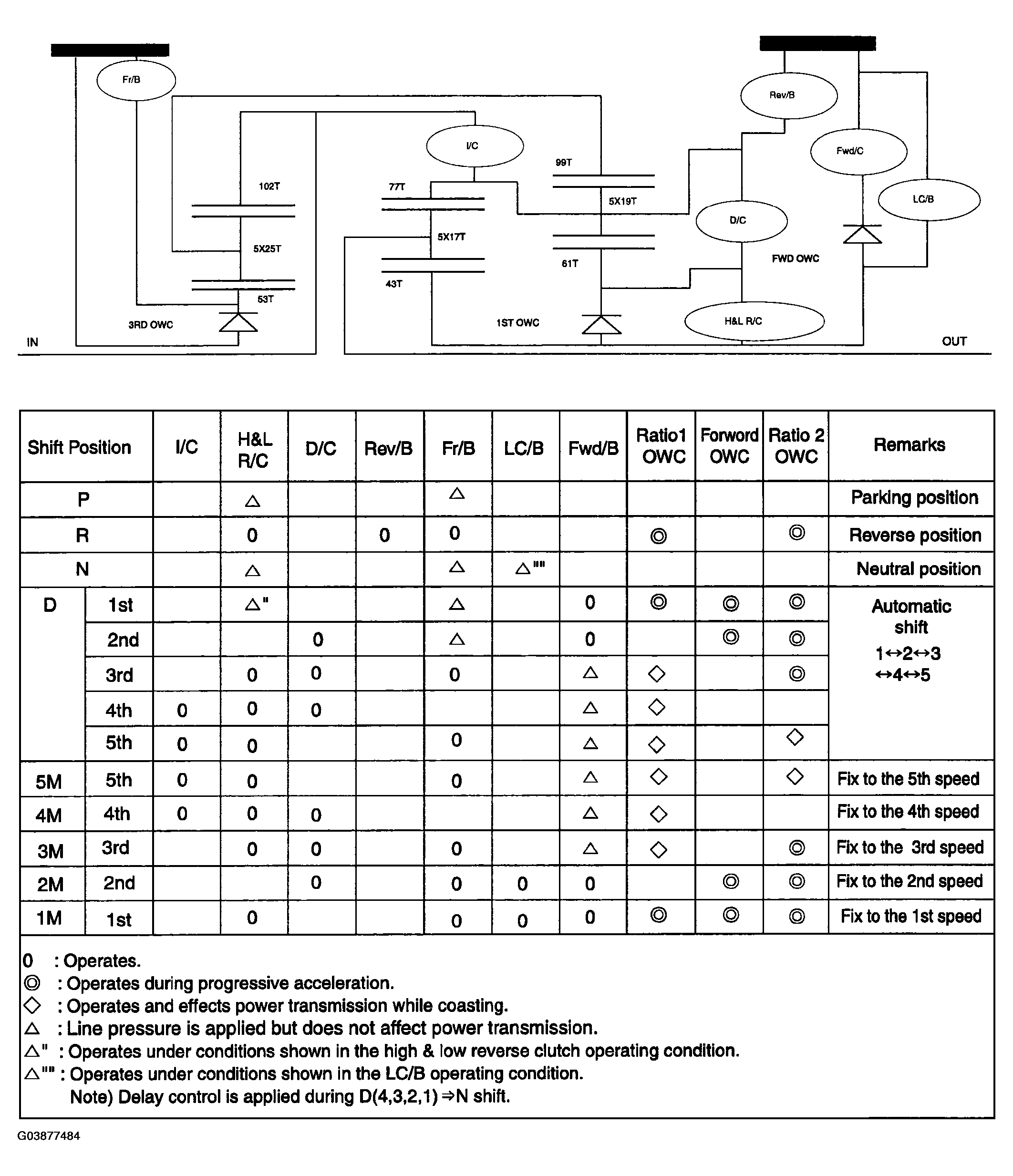

Fig 1: Automatic Transmission (A5SR1) Operation Diagram
G03877484Courtesy of KIA MOTORS AMERICA, INC.
