Control Assembly: Service and Repair

BLOWER AND A/C CONTROLS (AUTOMATIC)

CONTROL PANEL

REPLACEMENT
1. Disconnect the negative (-) battery terminal.
2. Remove the center console.




3. Remove the crash pad center lower garnish (A).

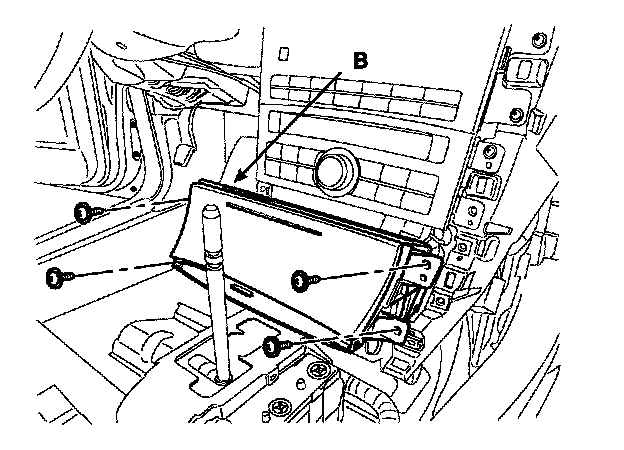

4. Remove the center facial tray (B) after loosening 4 screws.

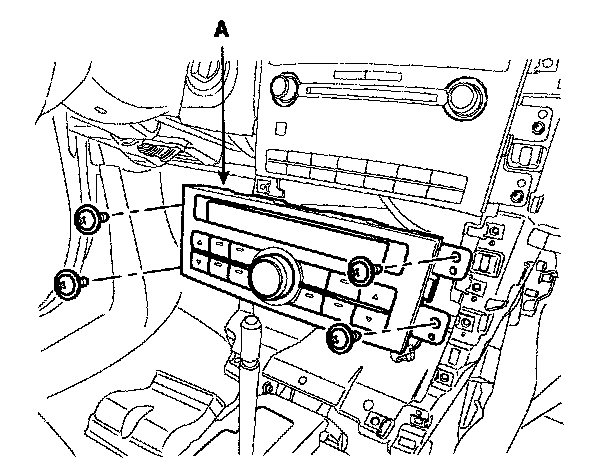

5. Remove the Heater & A/C controller (A) after loosening 4 screws.

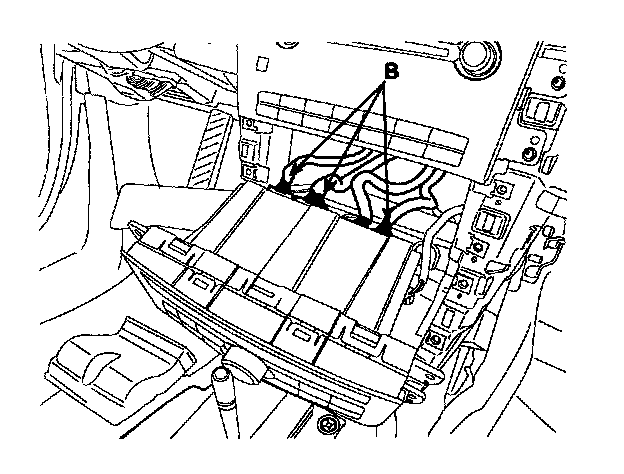

6. Disconnect the connector(B), and then remove the A/C controller.
7. Installation is the reverse order of removal.
