Circuit Diagrams

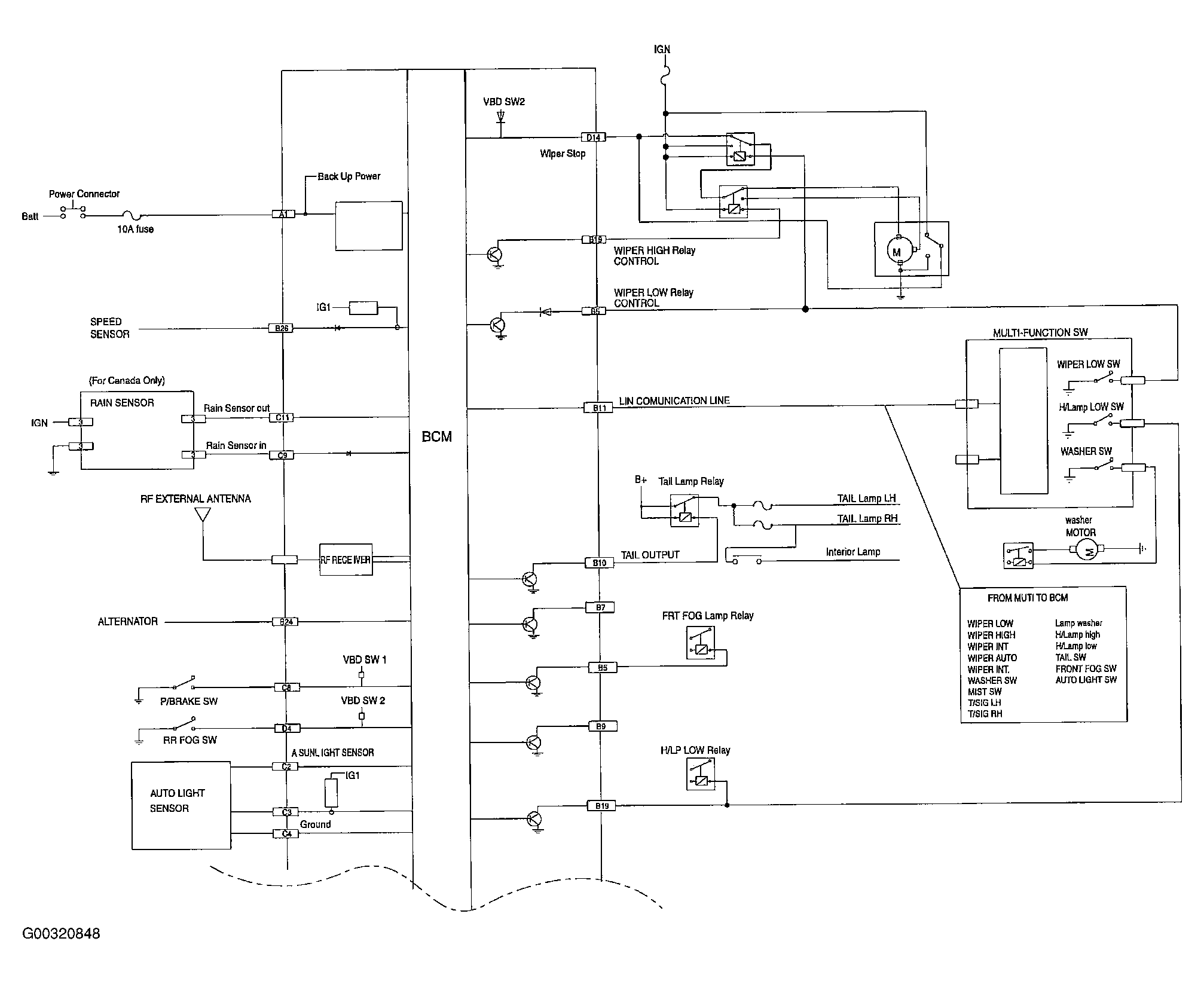

Fig 1: Circuit Diagram (1 Of 3)
G00320848Courtesy of KIA MOTORS AMERICA, INC.

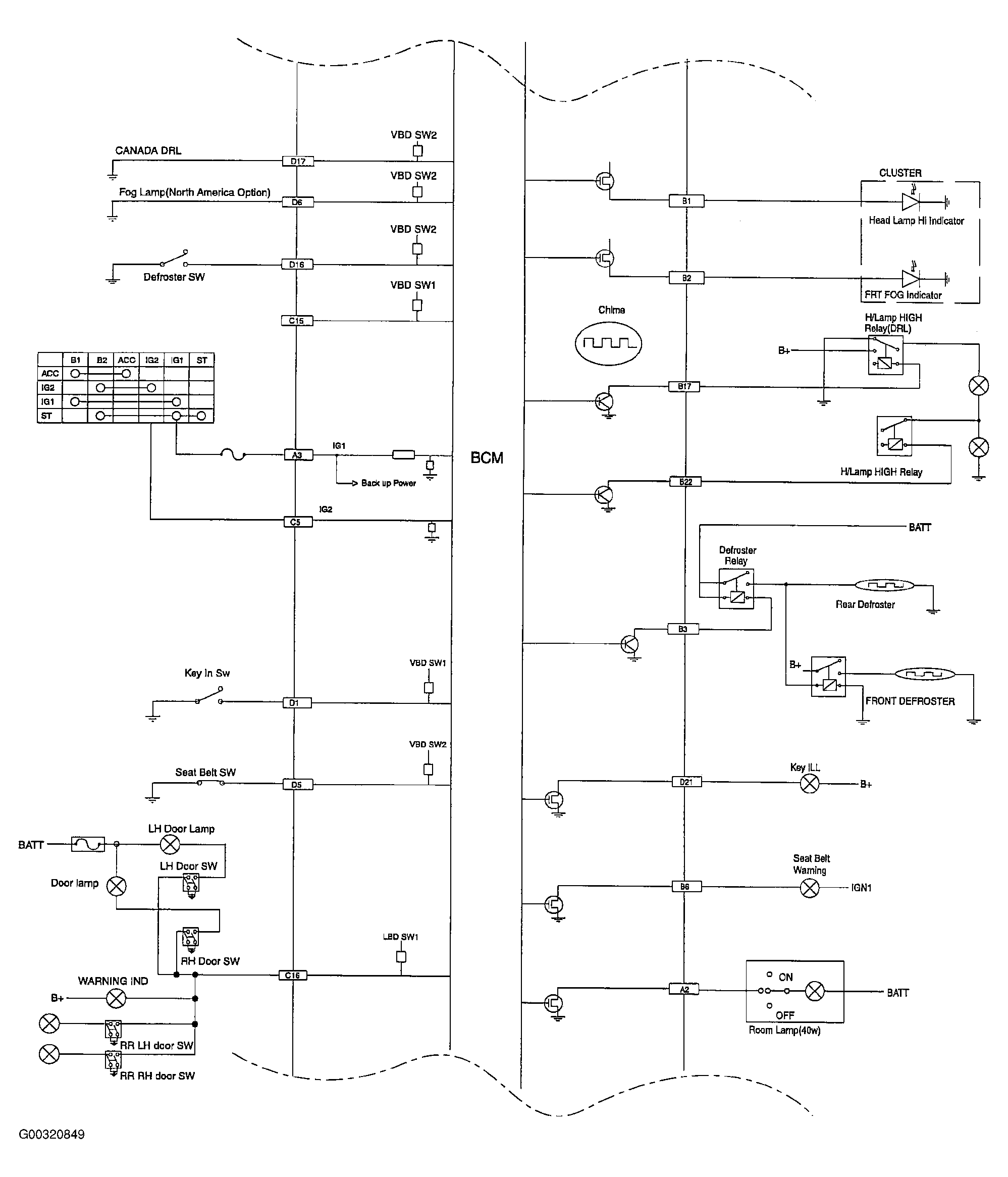

Fig 2: Circuit Diagram (2 Of 3)
G00320849Courtesy of KIA MOTORS AMERICA, INC.

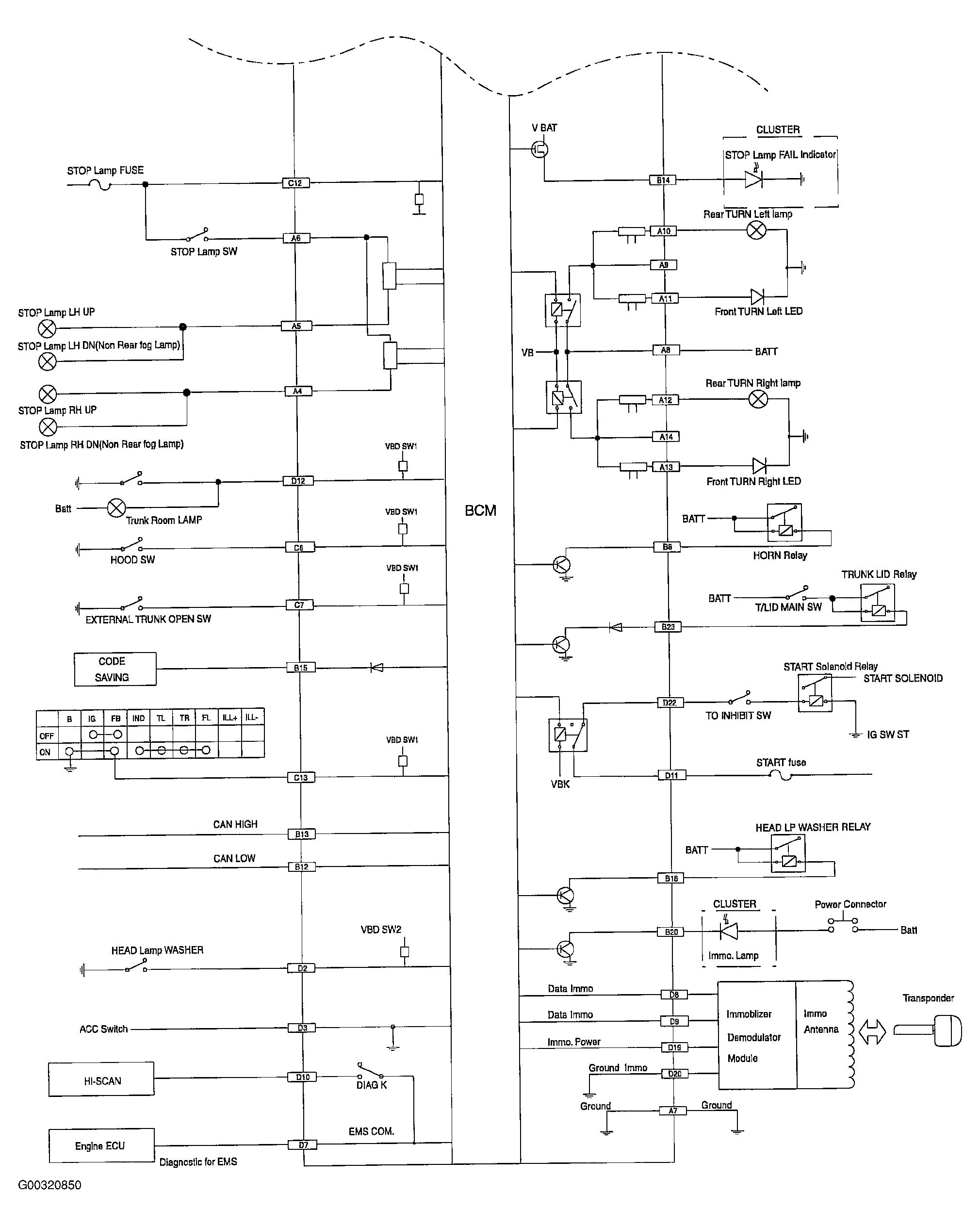

Fig 3: Circuit Diagram (3 Of 3)
G00320850Courtesy of KIA MOTORS AMERICA, INC.
