Charging System: Alternator: Components

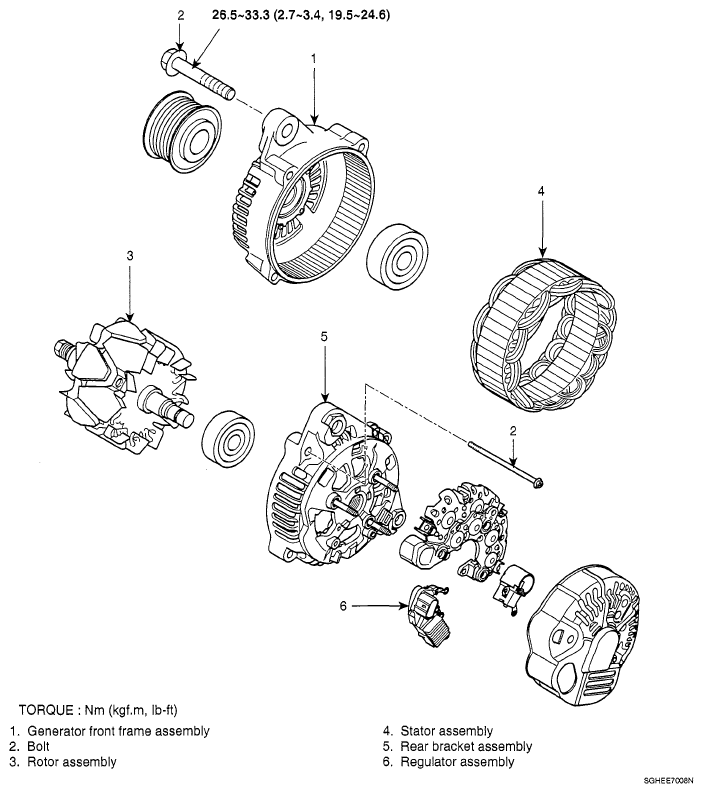

Fig 1: Alternator Components With Torque Specification

G05116243

Courtesy of KIA MOTORS AMERICA, INC.
