Trouble Diagnostics When Using Diagnosis Tool

The BCM is supported by the diagnostic tool. The diagnosis tool is used to review input/output values and drive actuators.
Use the appropriate diagnosis tool functions to access the BCM.

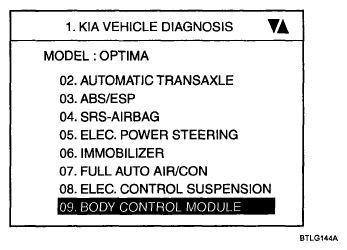

Fig 1: Scan Tool Display - 09. BODY CONTROL MODULE
Courtesy of KIA MOTORS AMERICA, INC.
To consult the present input/out value of BCM, "02. INPUT/OUTPUT MONITORING". It provides information of BCM input/output conditions of power supply, turn signal/brake lamp, headlamp, door, locks, outside mirror, wiper, auto-light and transmitters etc.

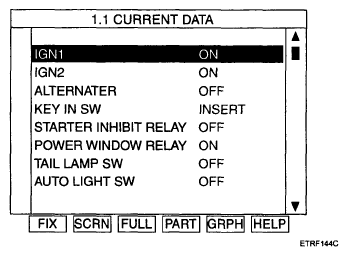

Fig 2: Scan Tool Display - 01. CURRENT DATA
Courtesy of KIA MOTORS AMERICA, INC.

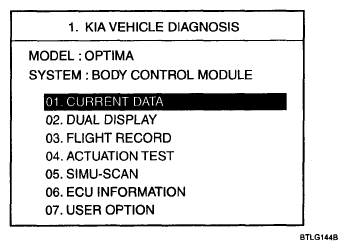

Fig 3: Scan Tool Display - IGN1
Courtesy of KIA MOTORS AMERICA, INC.
Select "04. ACTUATION TEST".

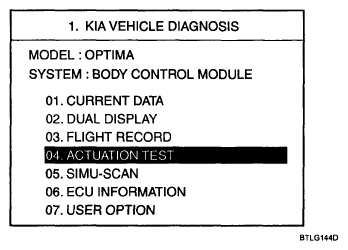

Fig 4: Scan Tool Display - 04. ACTUATION TEST
Courtesy of KIA MOTORS AMERICA, INC.

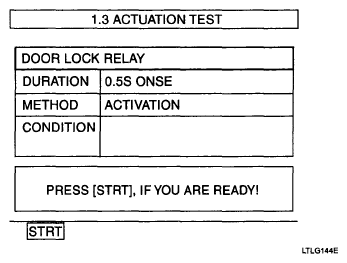

Fig 5: Scan Tool Display - 1.3 ACTUATION TEST
Courtesy of KIA MOTORS AMERICA, INC.
