ICM (Integrated Circuit Module) Relay Box: Description

WARNING: This page is about a different car, the 2007 Kia Sedona and 2006 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.

The ICM (Integrated circuit module) relay (A) is united with many kinds of relays and installed side of the in-panel module.

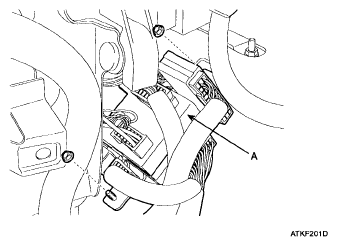

Fig 1: Identifying ICM Relay Box
G04884918Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Identifying ICM Relay Connectors Terminals
G04884919Courtesy of KIA MOTORS AMERICA, INC.
