Ram (Rear Area Module)
WARNING: This page is about a different car, the 2007 Kia Sedona and 2006 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.

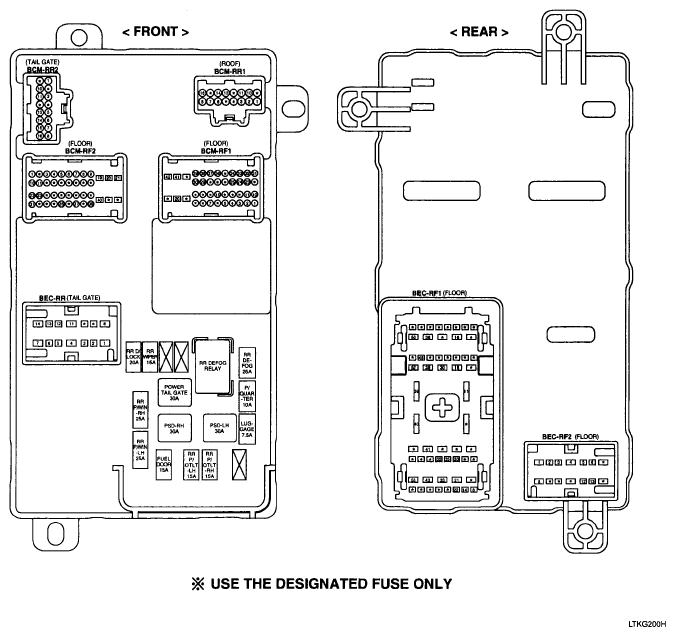

For fuse locations within the passenger compartment rear area fuse box, refer to Fig 1.
Use designated fuses only.
IDENTIFYING FUSES (REAR AREA PASSENGER COMPARTMENT FUSE BOX - RAM)
| Description | Fuse Rating | Protected Components |
|---|---|---|
| PSD-LH | 30A | POWER SLIDING DOOR MODULE LH |
| PSD-RH | 30A | POWER SLIDING DOOR MODULE RH |
| RR-DEFOG | 25A | RR DEFOG RELAY, REAR DEFOGGER |
| POWER TAILGATE | 30A | POWER TAIL GATE MODULE |
| P/QUARTER | 10A | QUARTER GLASS OPEN RELAY LH, QUARTER GLASS CLOSE RELAY LH QUARTER GLASS OPEN RELAY RH, QUARTER GLASS CLOSE RELAY RH |
| RR/WIPER | 15A | RR WIPER RELAY, REAR WIPER MOTOR |
| RR D/LOCK | 20A | S/DOOR LOCK RELAY, S/DOOR UNLOCK RELAY SLIDING DOOR LOCK ACTUATOR, TAILGATE LOCK ACTUATOR |
| PR P/OTLT-LH | 15A | REAR POWER OUTLET LH |
| PR P/OTLT-RH | 15A | REAR POWER OUTLET RH |
| FUEL DOOR | 15A | FUEL FILLER RELAY, FUEL FILLER ACTUATOR |
| RR P/WIN-LH | 25A | S/DOOR WINDOW RELAY (UP) LH S/DOOR WINDOW RELAY (DN) LH |
| RR P/WIN-RH | 25A | S/DOOR WINDOW RELAY (UP) RH S/DOOR WINDOW RELAY (DN) RH |
| LUGGAGE | 7.5A | LUGGAGE LAMP, POWER TAILGATE ON/OFF SWITCH |
