Checking Flow

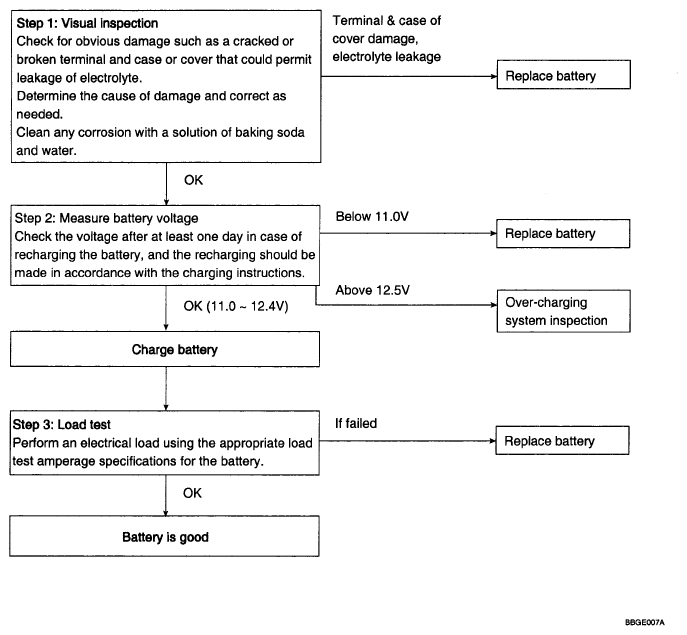

Fig 1: Battery Diagnostic Test Flow Diagram

G04882088

Courtesy of KIA MOTORS AMERICA, INC.
