Schematic Diagram

WARNING: This page is about a different car, the 2007 Kia Sedona and 2006 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.

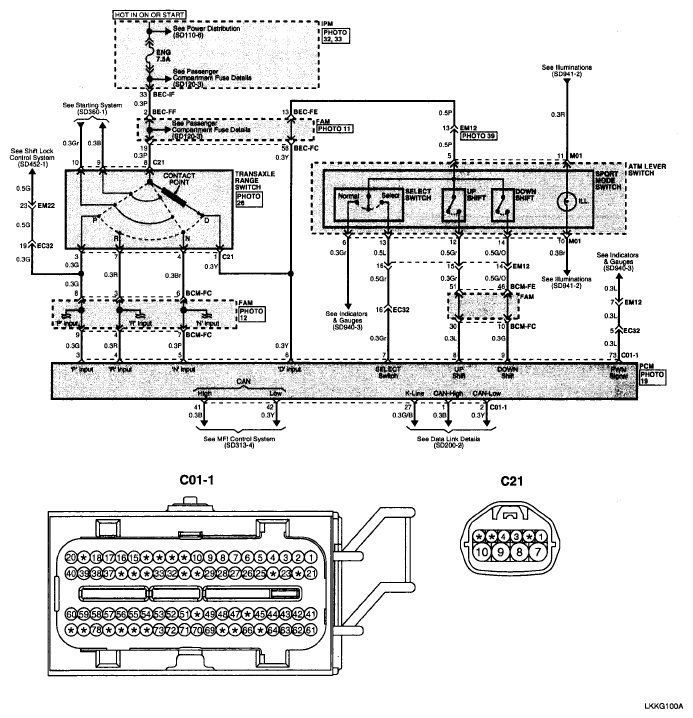

Fig 1: Transaxle Range Switch Diagram - Low Input
G04882199Courtesy of KIA MOTORS AMERICA, INC.
