Air Bag Module And Clock Spring: Removal

  1. Disconnect the battery negative cable and wait at least three minutes before beginning work.
  2. Remove the three airbag module mounting bolts.

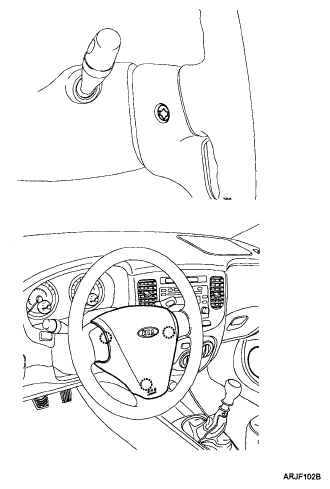

    Fig 1: Identifying Airbag Module Mounting Bolts
    G04863029Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the horn connector(A).

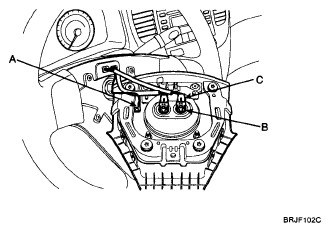

    Fig 2: Identifying Horn Connector
    G04863030Courtesy of KIA MOTORS AMERICA, INC.
  4. Release the connector locking pin(B), then disconnect the driver airbag module connector(C).
    CAUTION: The removed airbag module should be stored in a clean, dry place with the pad cover face up.
  5. Remove the steering wheel and steering wheel column cover. (Refer to STEERING COLUMN AND SHAFT )
  6. Disconnect the clock spring and horn connector, then remove the clock spring.
    Fig 3: Identifying Driver Airbag Module Connector
    G04863031Courtesy of KIA MOTORS AMERICA, INC.
