Anti-Lock Braking System Control Module: Components

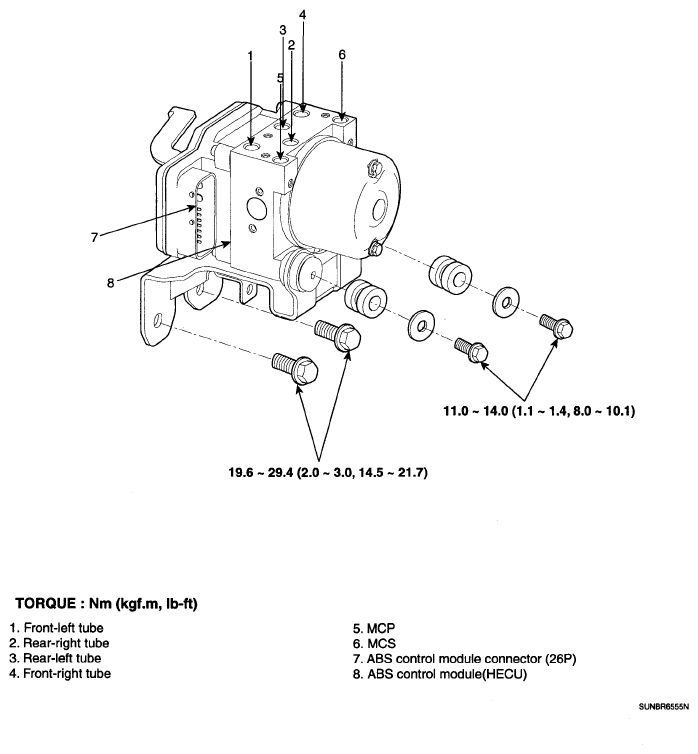

Fig 1: Identifying Anti-Lock Braking System Control Module Components
G05187612Courtesy of KIA MOTORS AMERICA, INC.
