Anti-Lock Braking System Control Module: Removal

Turn the ignition switch OFF.
Pull up the lock (A) of the ABS control unit 25P connector, then disconnect the connector.

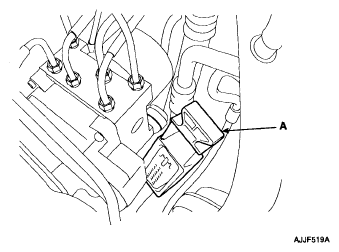

Fig 1: Locating ABS Control Unit Lock
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the brake tubes from the HECU by unlocking the nuts counterclockwise with a spanner.

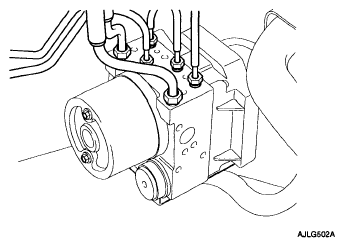

Fig 2: Identifying Brake Tubes
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the 2 ABS HECU bracket bolts (A), then remove HECU and bracket.

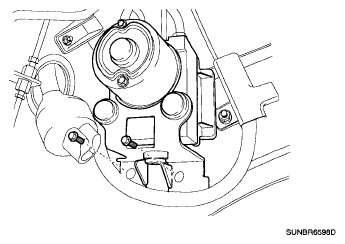

Fig 3: Locating ABS HECU Bracket Bolts
Courtesy of KIA MOTORS AMERICA, INC.
CAUTION:
1. Never attempt to disassemble the HECU.
2. The HECU must be transported and stored in.
3. Never shock to the HECU.
Remove the 2 bolts, then remove the bracket from HECU.
