Rear Power Window Motor

  1. Remove (-) negative battery terminal.
  2. Remove the rear door trim. (Refer to the REAR DOOR )
  3. Disconnect the 6P connector from the motor.

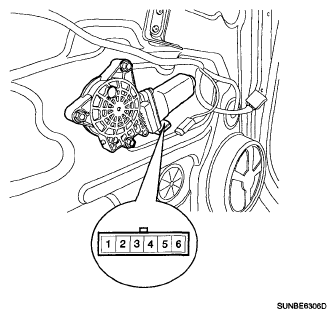

    Fig 1: Identifying Rear Power Window Motor Connector Terminals
    G05187888Courtesy of KIA MOTORS AMERICA, INC.
  4. Connect the motor terminals directly to battery voltage (12V) and check that the motor operates smoothly. Next, reverse the polarity and check that the motor operates smoothly in the reverse direction. If the operation is abnormal, replace the motor.
    Fig 2: Rear Power Window Motor Connector Terminals Continuity Chart
    G05187887Courtesy of KIA MOTORS AMERICA, INC.
