Schematic Diagram

WARNING: This page is about a different variant/trim than selected.

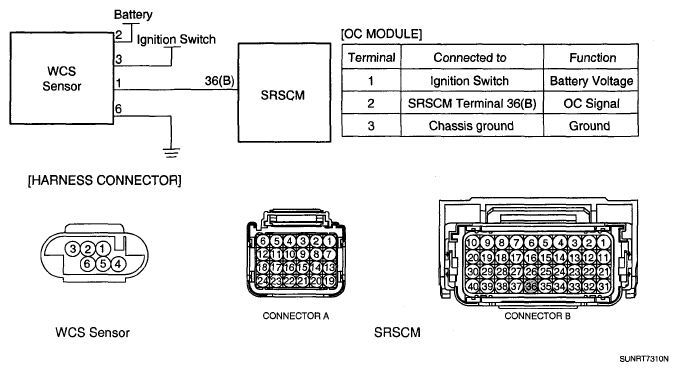

Fig 1: WCS - Schematic Diagram

G05187232
