Front Fender Liner: Service and Repair

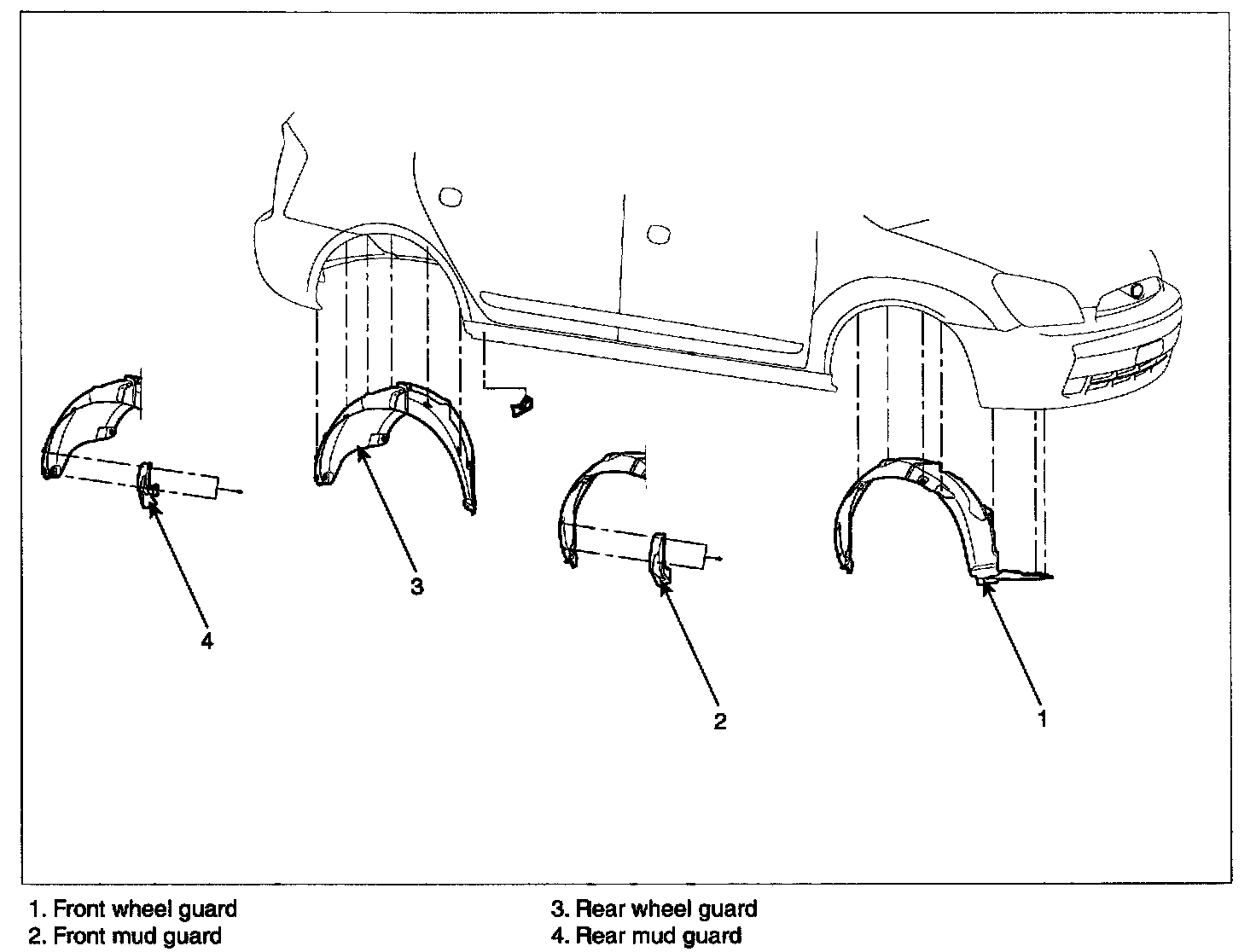

MUD GUARD AND WHEEL GUARD REPLACEMENT

NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.






- Take care not to scratch the body surface.

1. Remove the wheel guard.
2. Installation is the reverse of removal.
