Gasoline Engine Control System

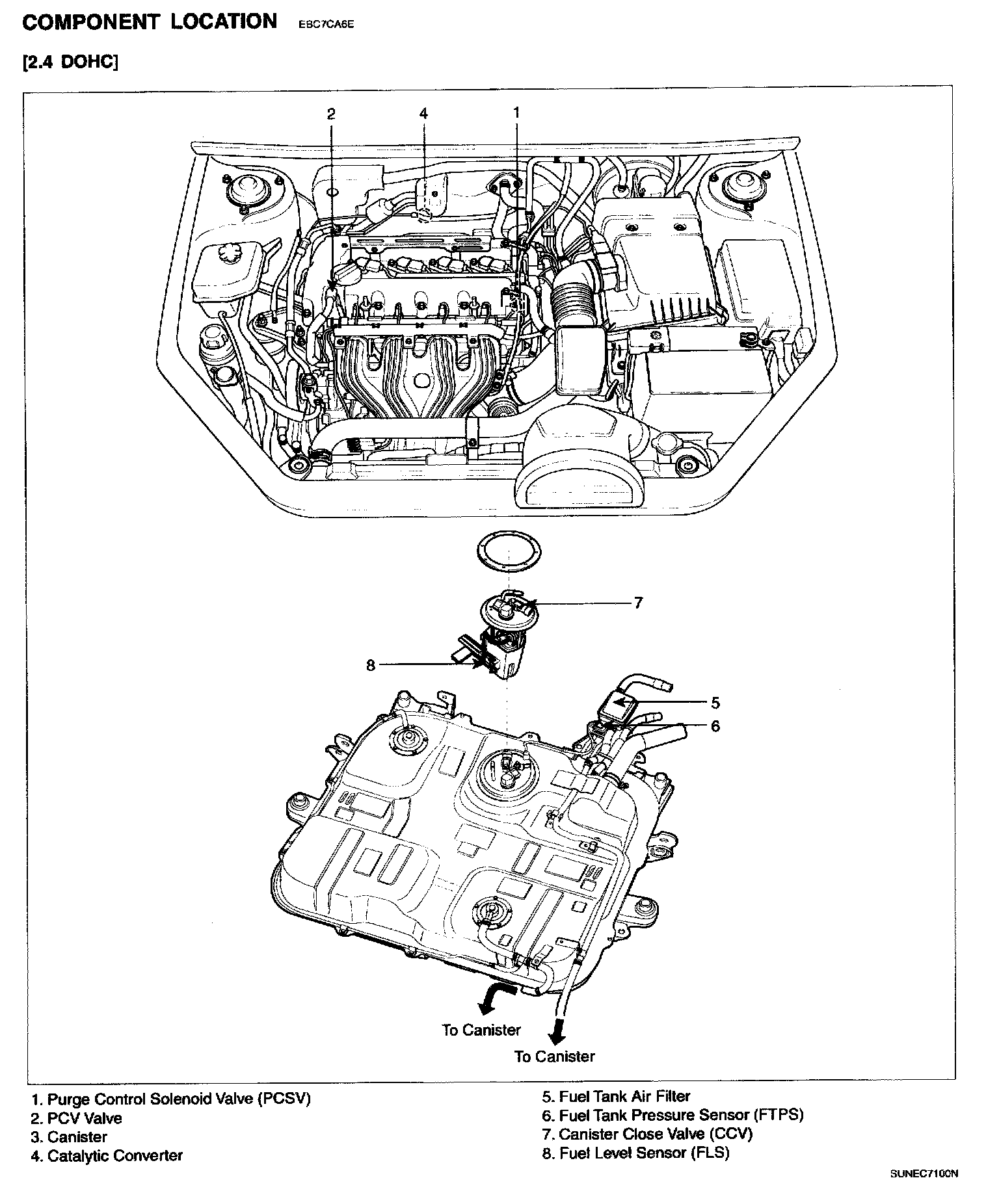

Emissions Control System Components Location:



Gasoline Engine Control System Component Location:

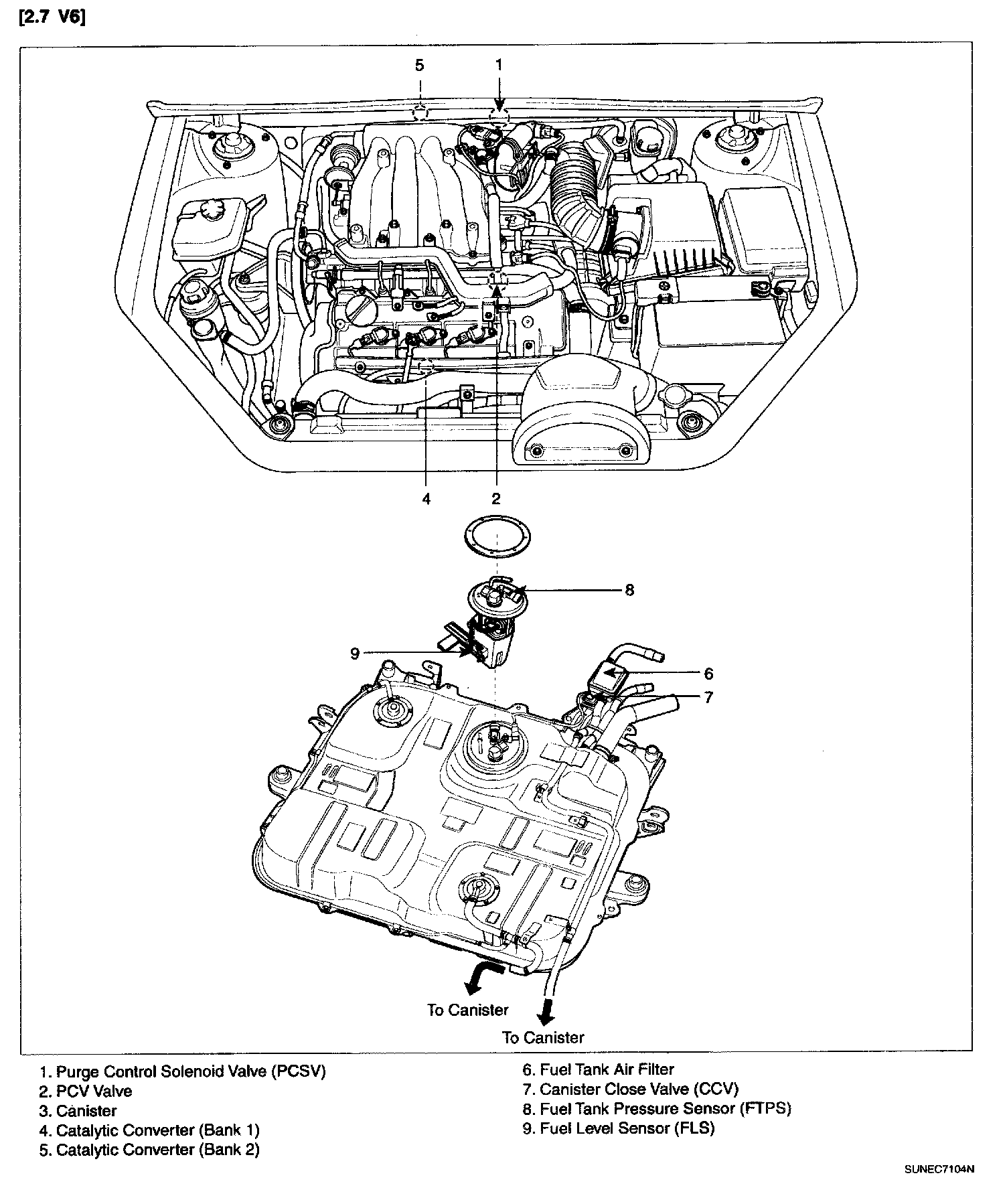

Emissions Control System Components Location:
