Monitor SCANTOOL Data

  1. Connect scantool to DLC. (Data Link Connector)
  2. Warm up the engine to normal operating temperature.
  3. Monitor "TPS1 & 2, MAPS, MAFS" parameters on scantool

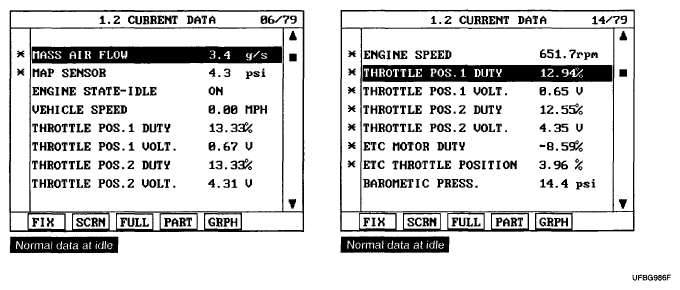

    Fig 1: Scan Tool Display Screen - Mass Air Flow And Throttle Pos. 1 Duty
    G04883606Courtesy of KIA MOTORS AMERICA, INC.

    YES

    • Fault is intermittent caused by poor contact in Sensor's and/or PCM's connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure

    NO
