Air Flow Meter/Sensor
SPECIFICATION
SENSOR
MASS AIR FLOW SENSOR (MAFS)
- Type: Hot-film type

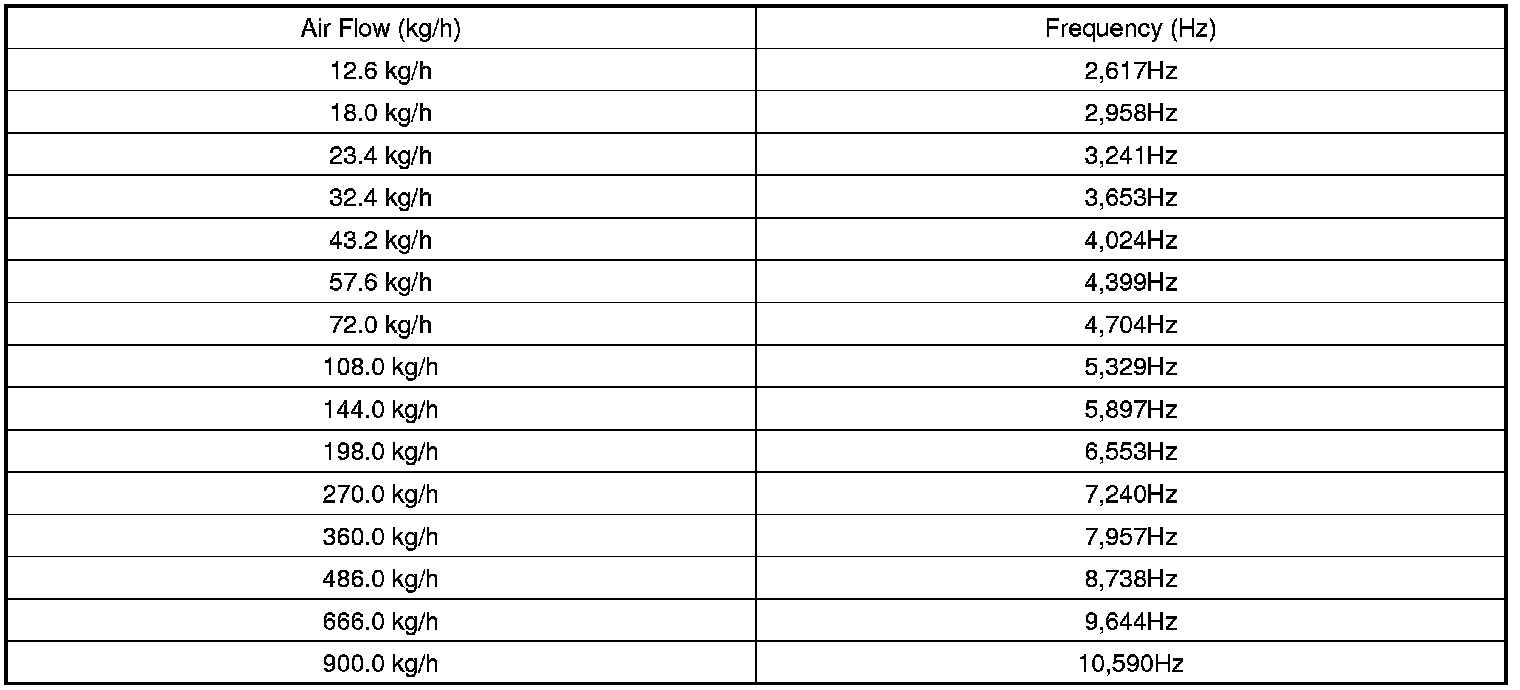

- Specification
