Front Door: Components: Notes

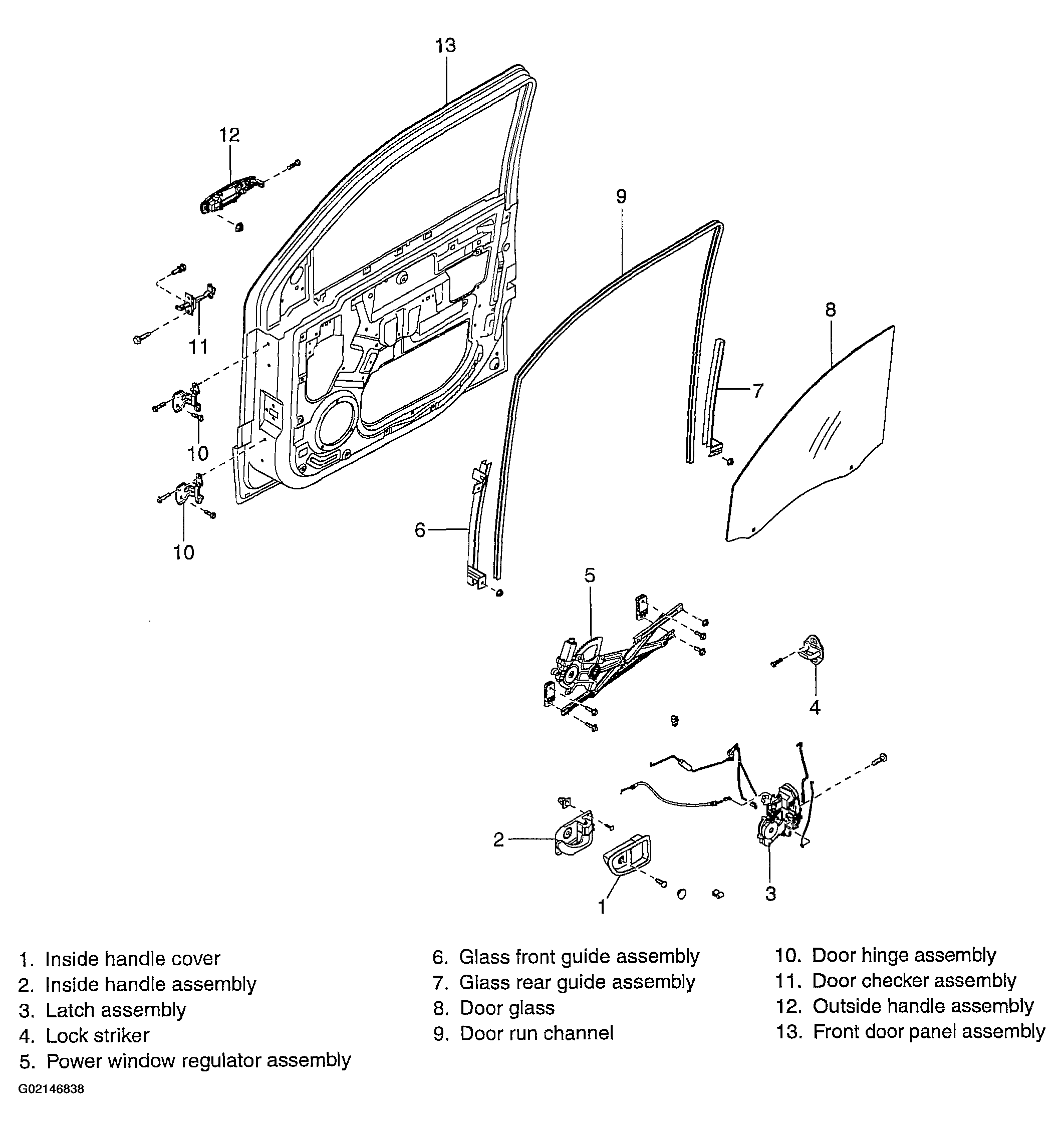

Fig 1: Identifying Front Door Components (1 Of 2)
G02146838Courtesy of KIA MOTORS AMERICA, INC.

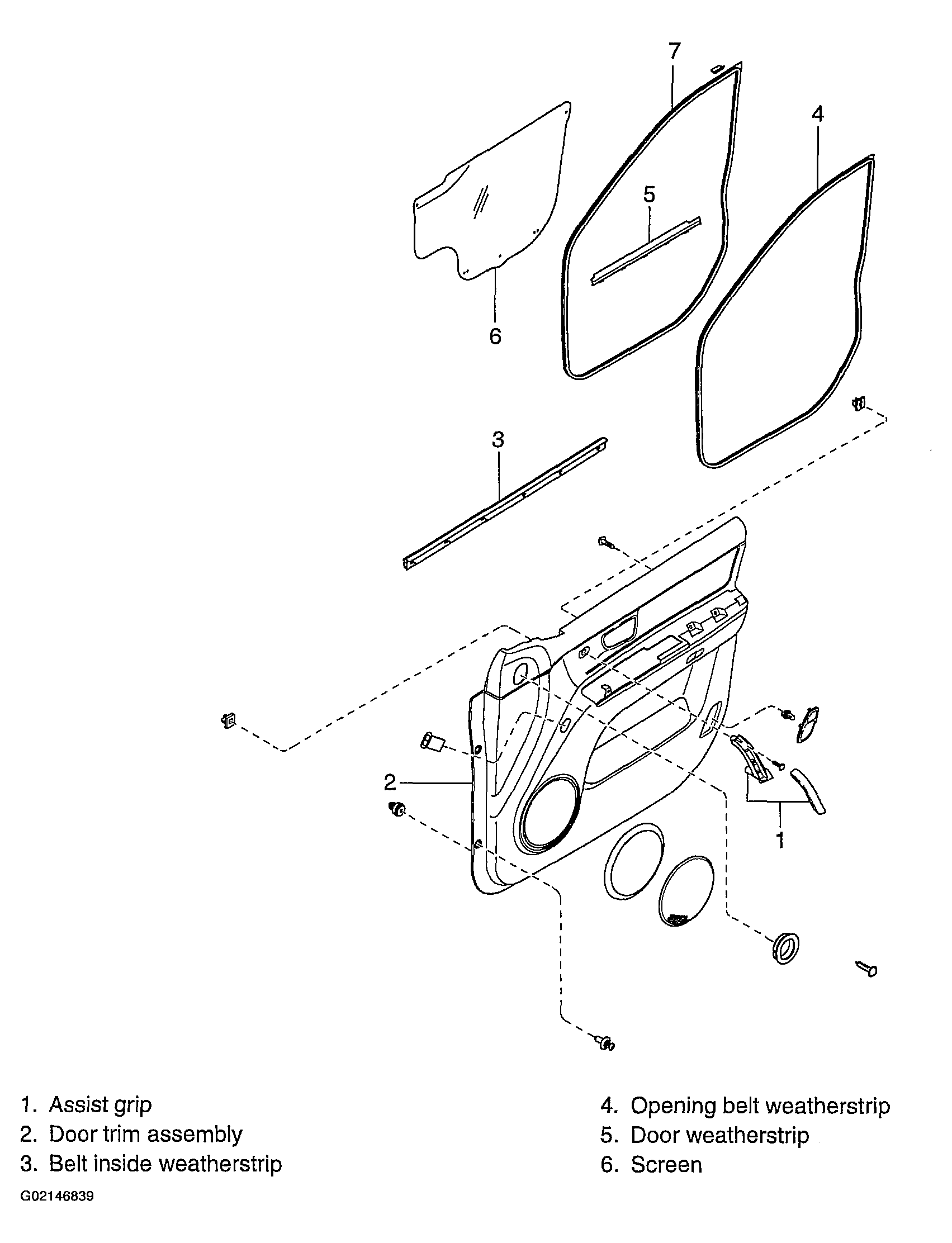

Fig 2: Identifying Front Door Components (2 Of 2)
G02146839Courtesy of KIA MOTORS AMERICA, INC.
