2007
>>
Sorento Base, A5SR2
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Gasoline Engine Control System
>>
Manifold Absolute Pressure Sensor (Maps)
>>
Inspection
>>
Schematic Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Schematic Diagram

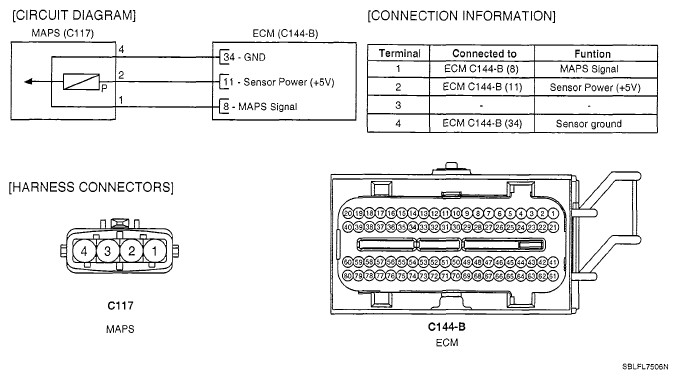

Fig 1: Connector Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
