Component Inspection

Check TPS
1. IG "OFF" and disconnect TPS connector.
2. Measure resistance between terminals 1 and 5 of TPS connector (component side).
  Specification: 2.7-4.1 kΩ

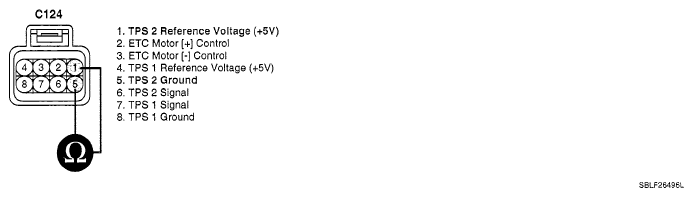

  Fig 1: Measuring Resistance Between Terminals 1 And 5 Of TPS Connector (Component Side)
  Courtesy of KIA MOTORS AMERICA, INC.
3. Is the measured resistance within specification?
  YES
  - Substitute with a known-good ECM and check for proper operation. If the problem is corrected, replace ECM and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  NO
  - Substitute with a known-good TPS and check for proper operation. If the problem is corrected, replace TPS and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
    NOTE: There is a memory reset function on scan tool that can erase optional parts automatically detected and memorized by ECM. After testing ECM on the vehicle, use this function before reusing the ECM
    CAUTION:
    Procedure of ETS Initialization

    Erase the trouble codes on ECM

    Turn the ignition key off and keep this condition until the main relay is turned off. (10 sec.)

    Turn ignition key on more than 1 second to record the throttle motor position on the EEPROM
