Ignition System: Components

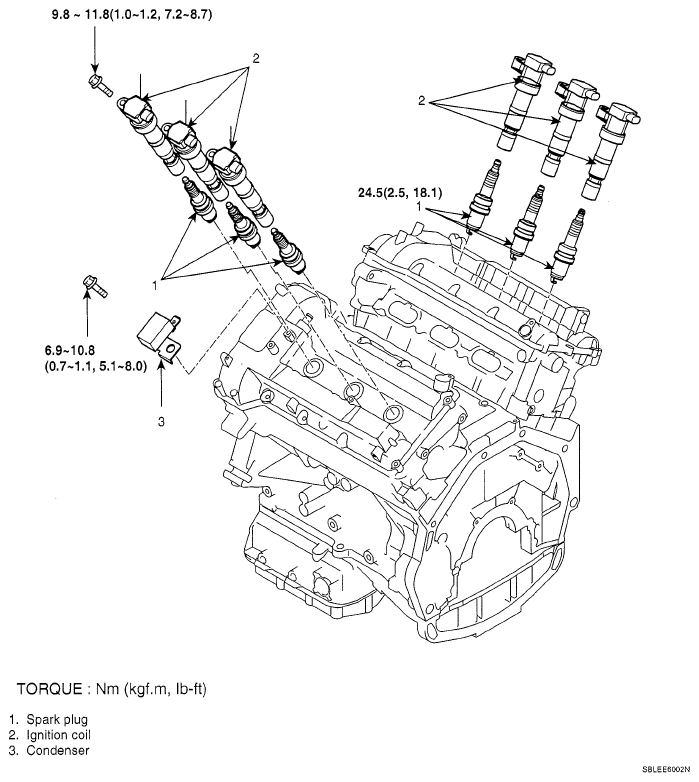

Fig 1: Ignition System Replacement Components With Torque Specifications
G05118172Courtesy of KIA MOTORS AMERICA, INC.
