Fuse: Locations

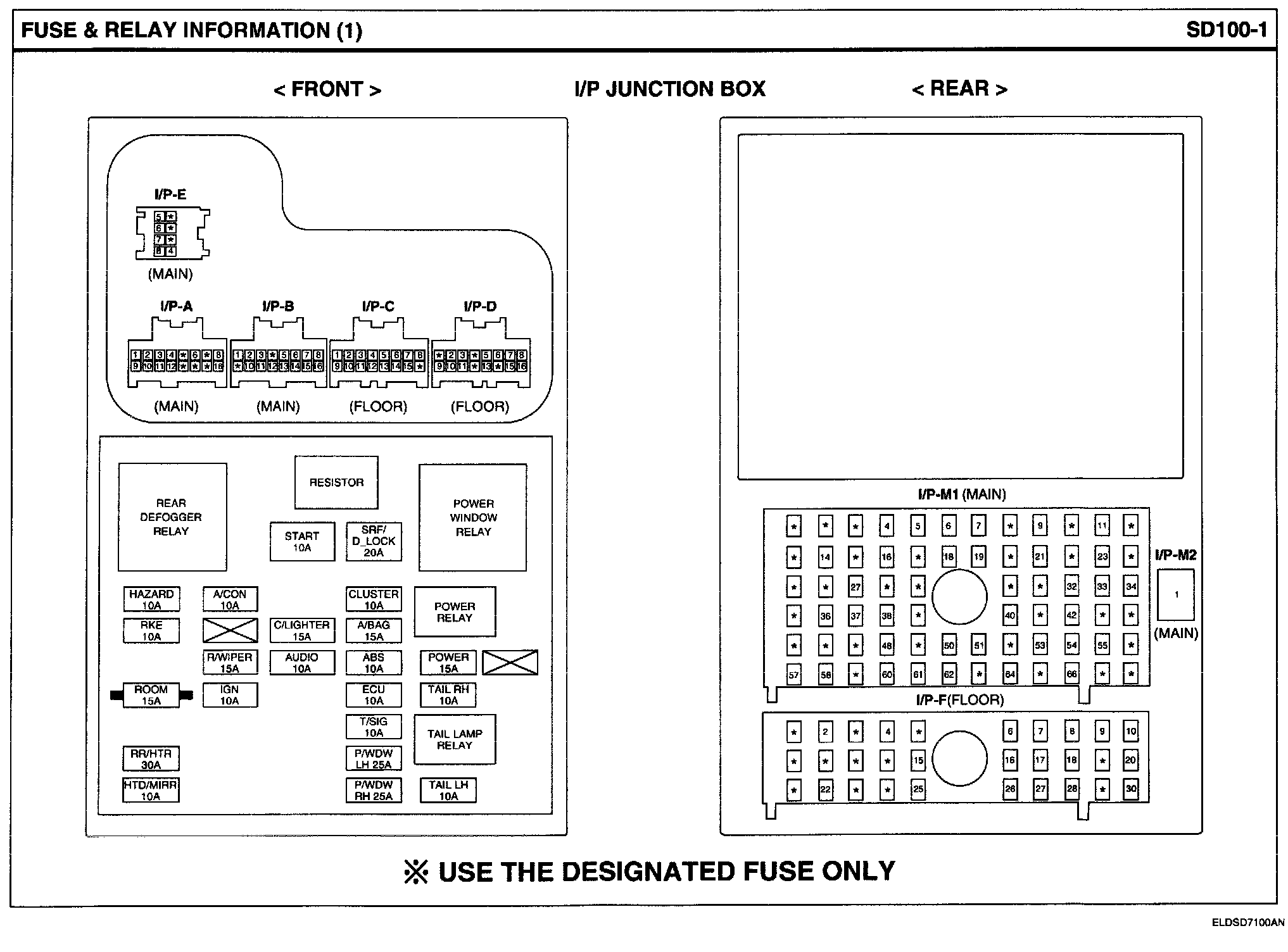

I/P Junction Box View:

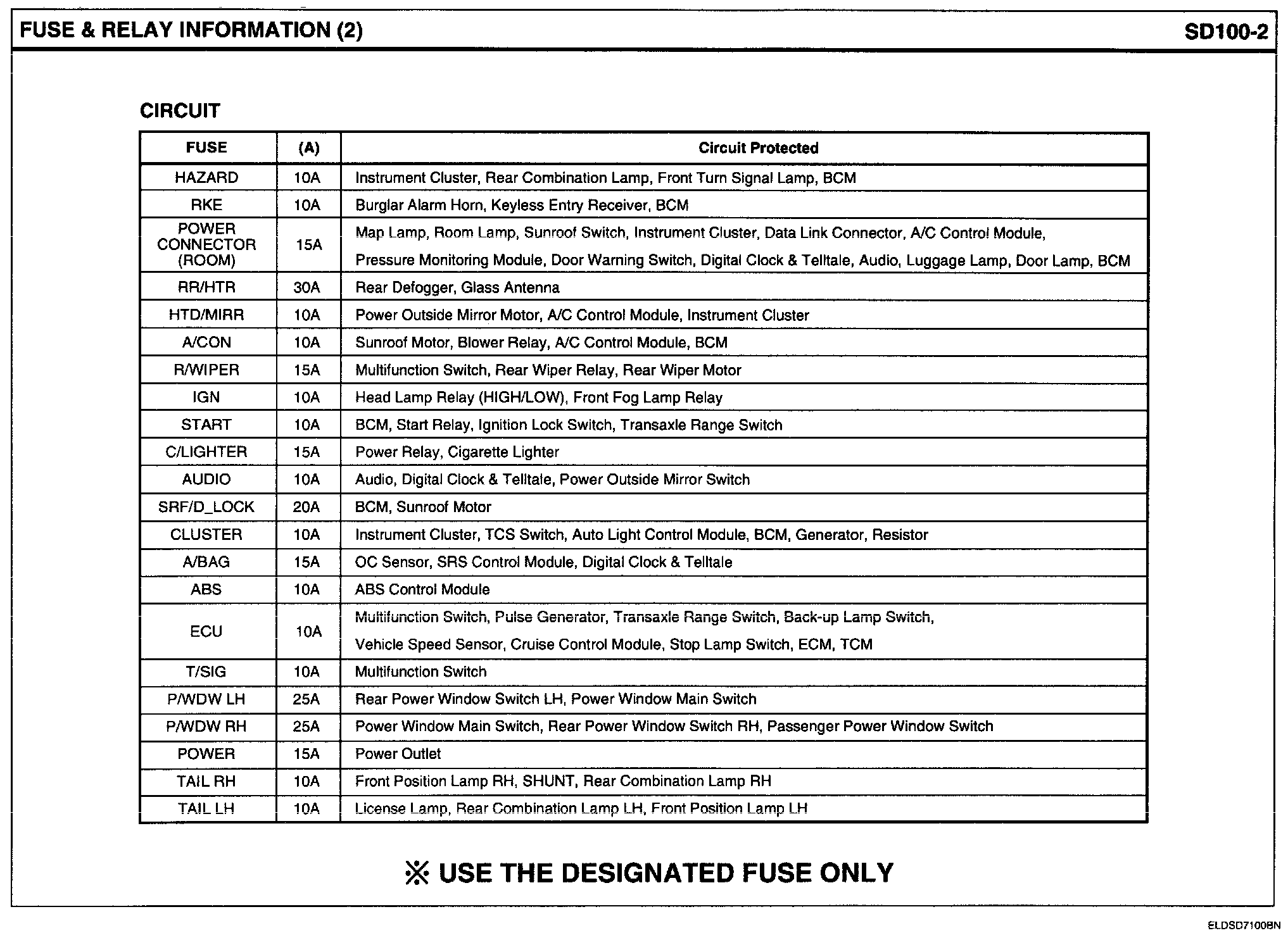

I/P Junction Box Circuit Details:

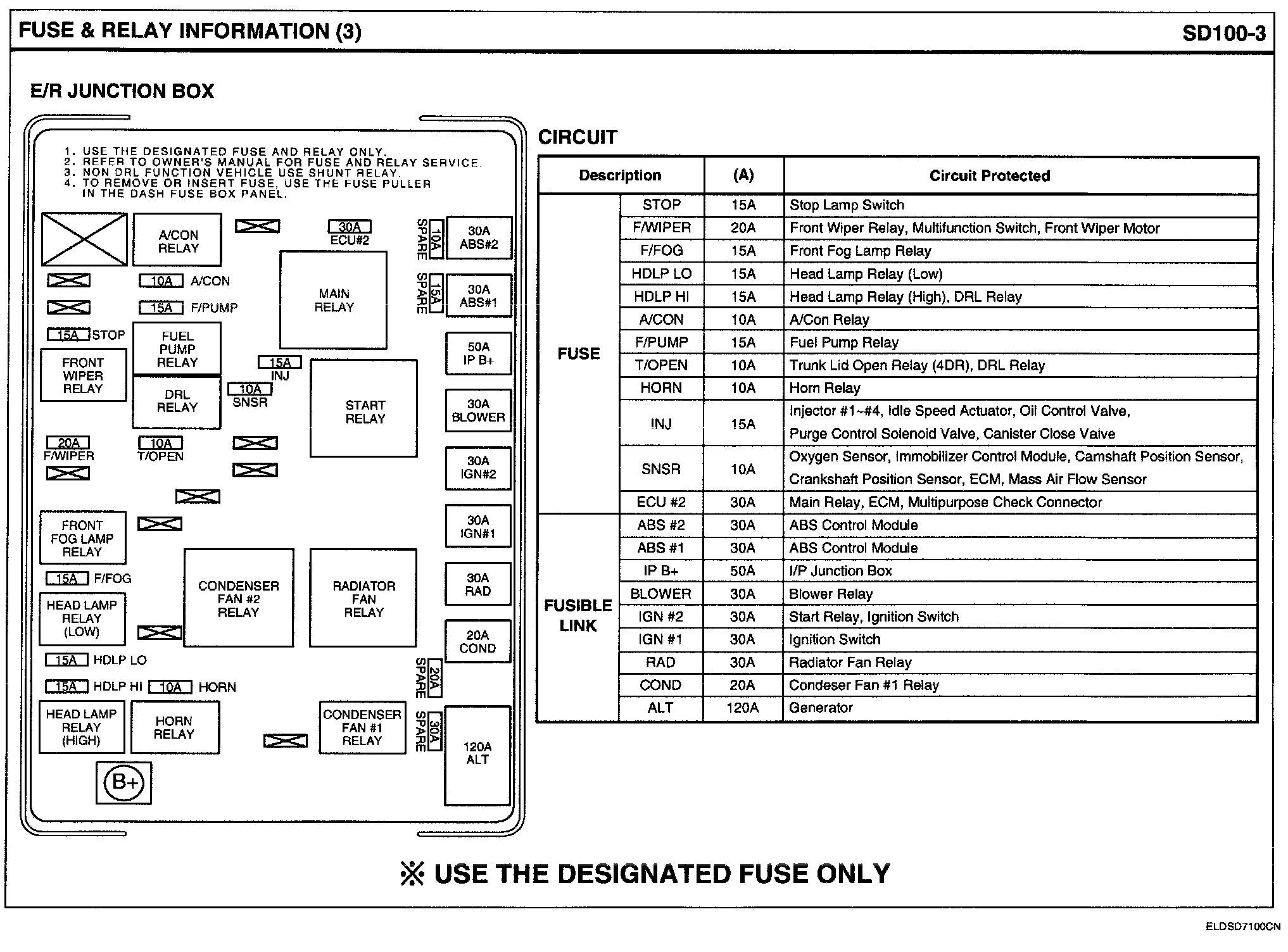

E/R Junction Box View And Circuit Details:
